Clutch Unit: Components

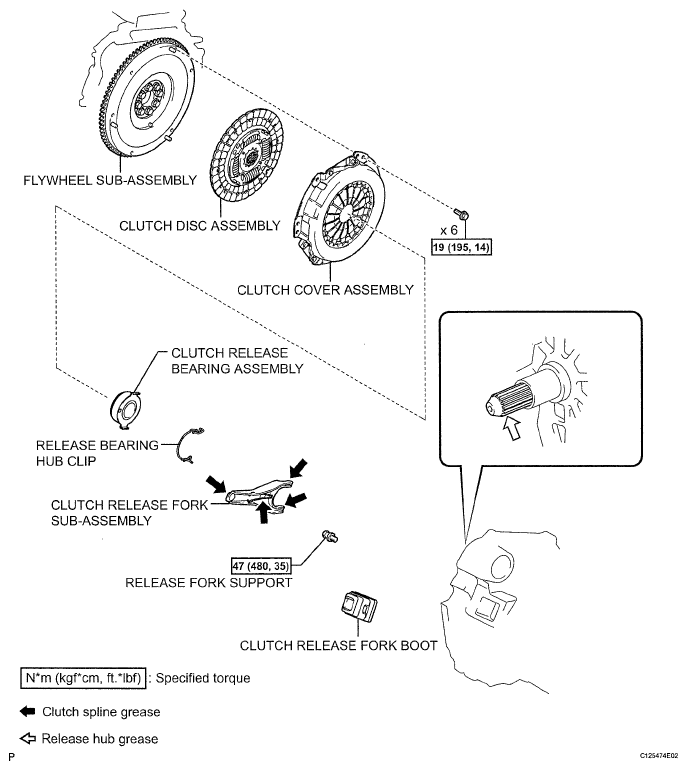

Fig 1: Clutch Unit Components w/Torque Specifications

G05388702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
