Ground Point: Notes

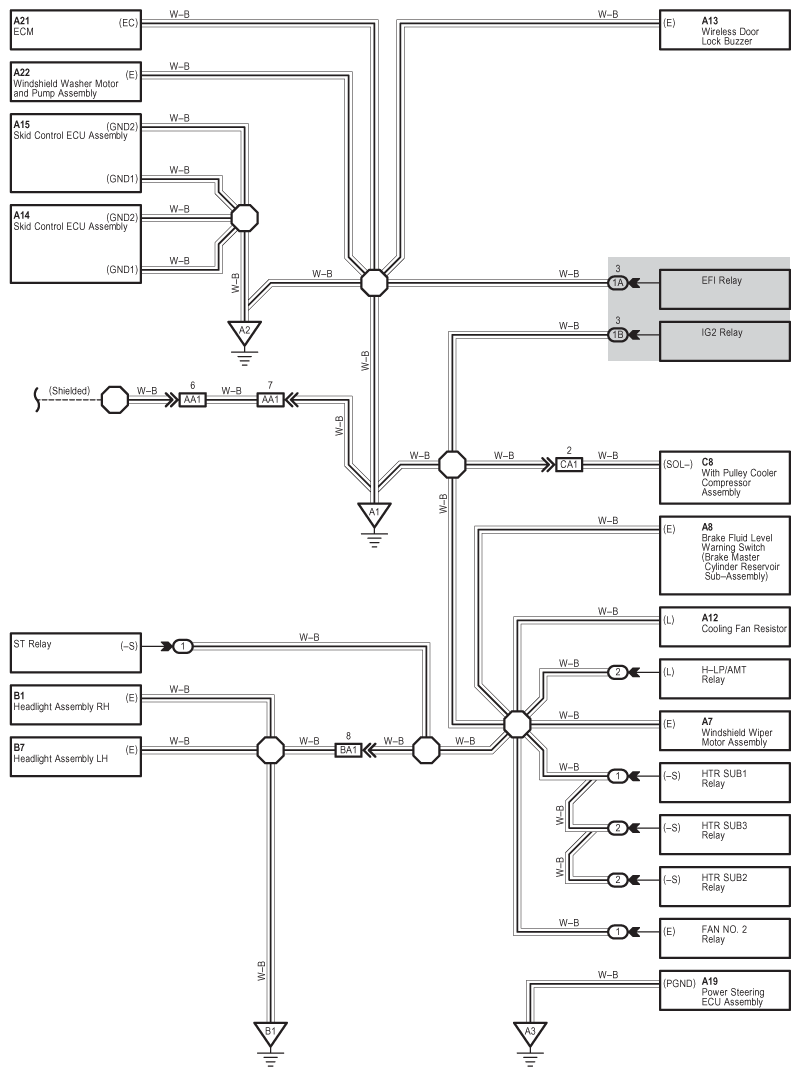

Fig 1: Ground Point - Circuit Diagram (1 Of 4)
G07618441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

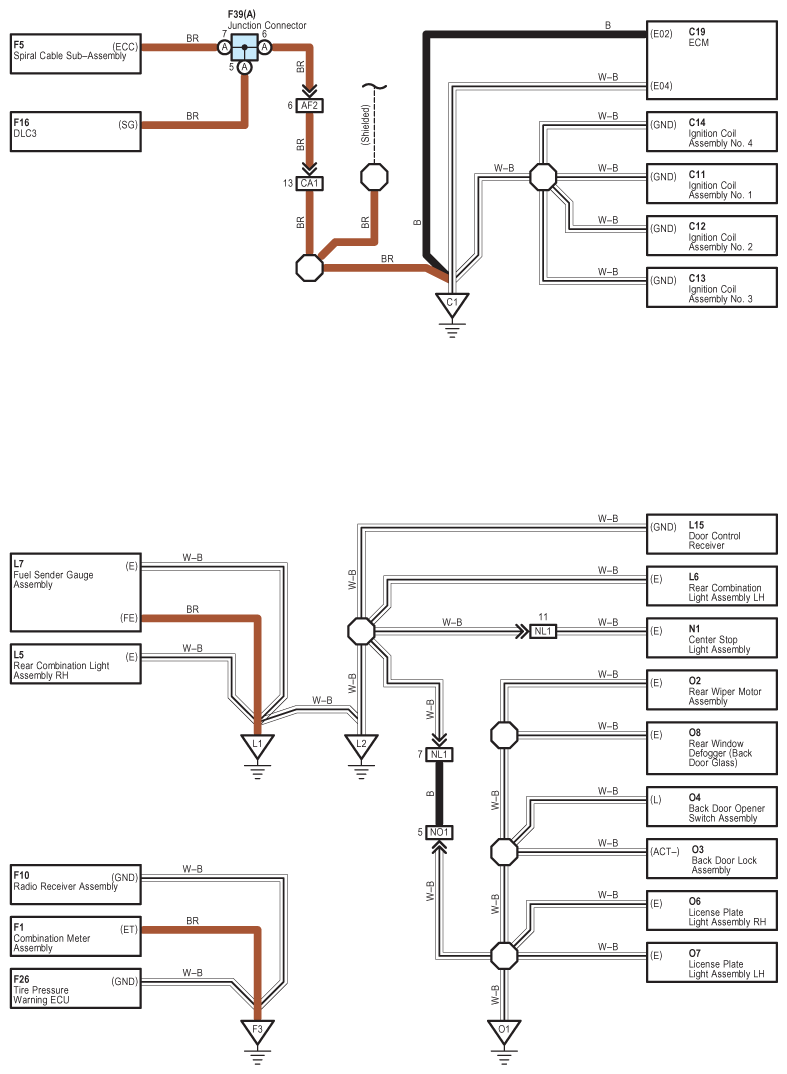

Fig 2: Ground Point - Circuit Diagram (2 Of 4)
G07618442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

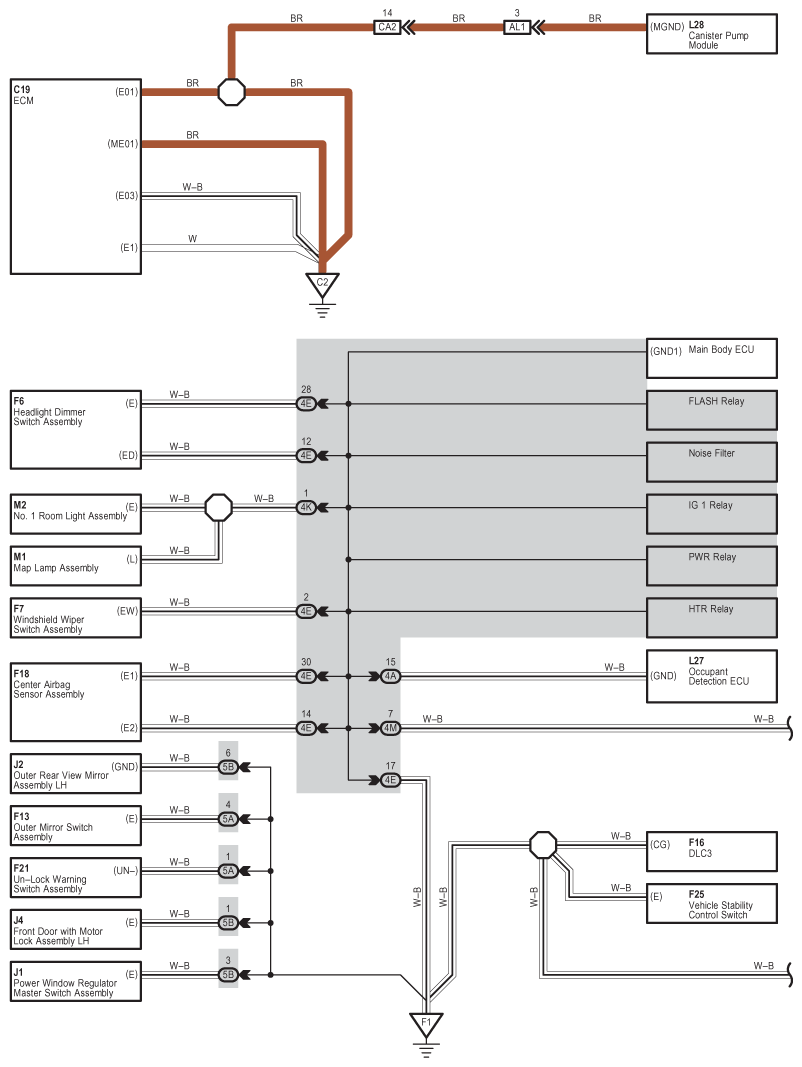

Fig 3: Ground Point - Circuit Diagram (3 Of 4)
G07618443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

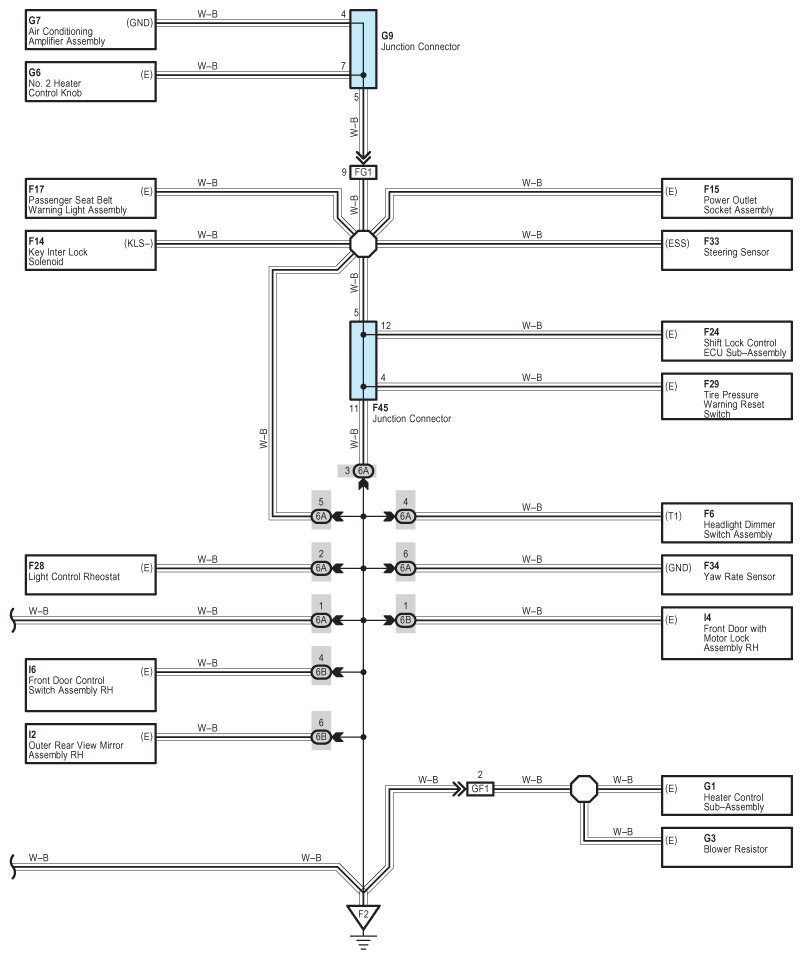

Fig 4: Ground Point - Circuit Diagram (4 Of 4)
G07618444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
