Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
Lower Instrument Panel
>>
Components
Lower Instrument Panel: Components

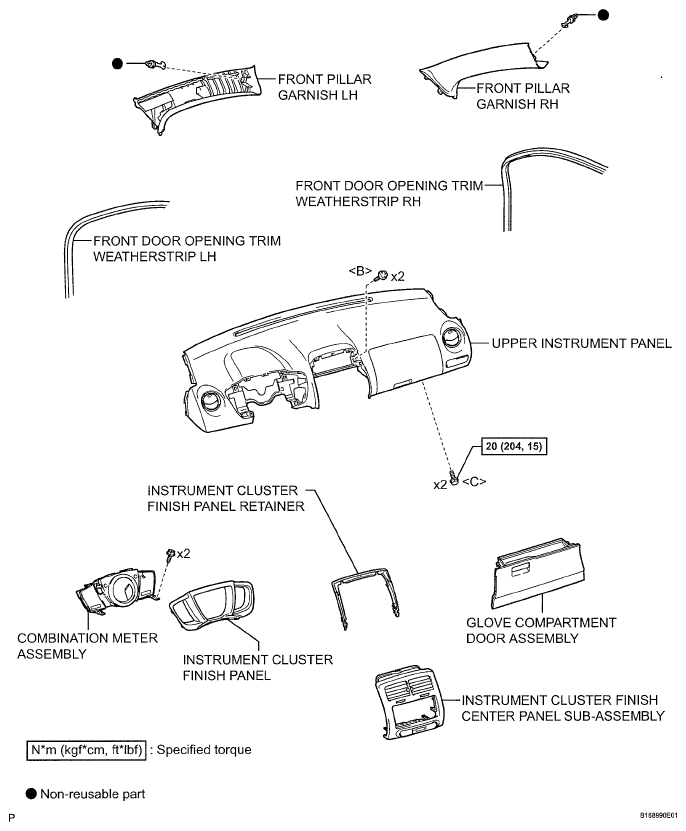

Fig 1: Upper Instrument Panel Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

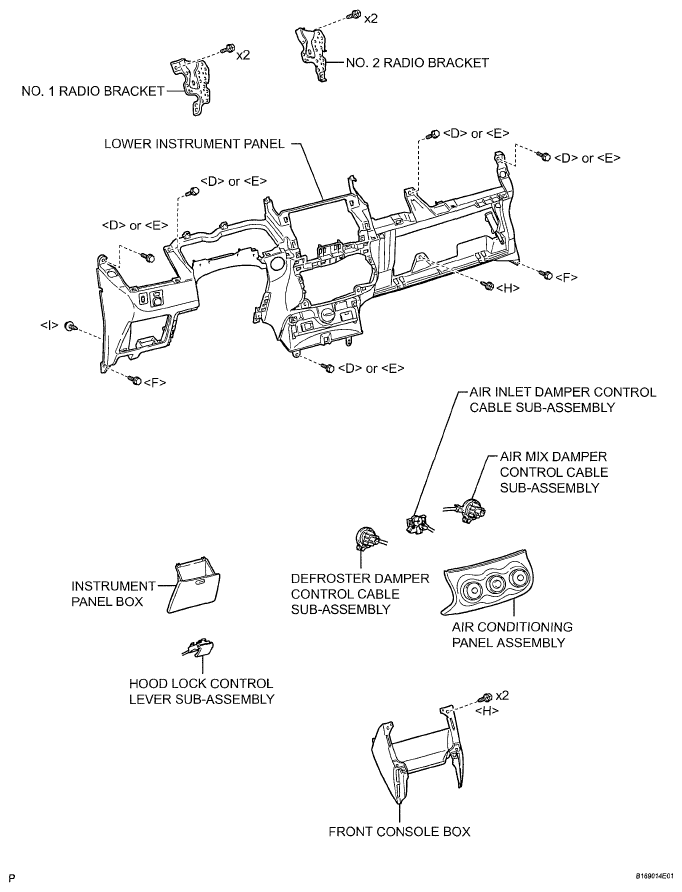

Fig 2: Identifying Lower Instrument Panel Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

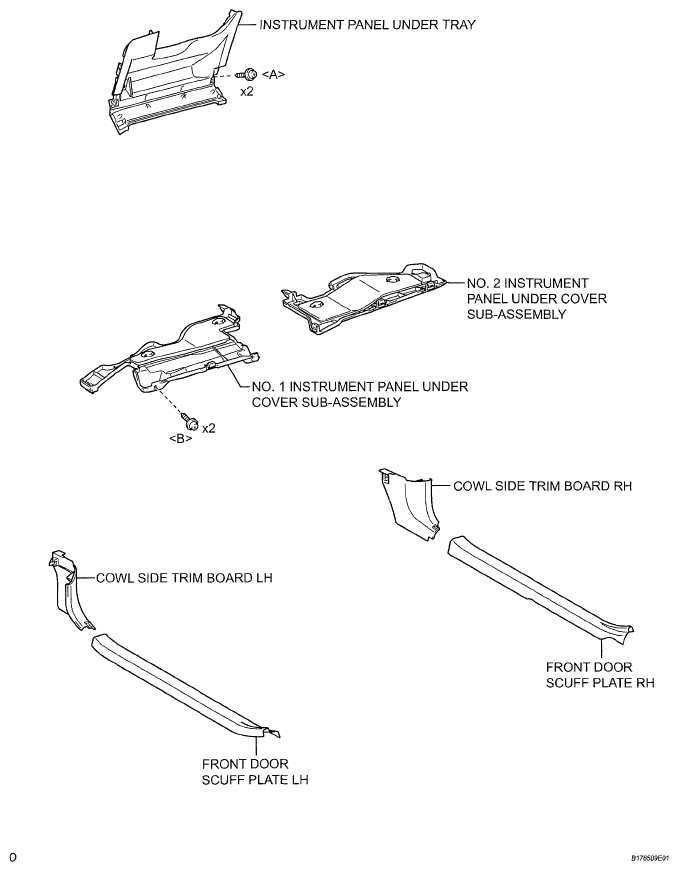

Fig 3: Identifying Lower Instrument Panel Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

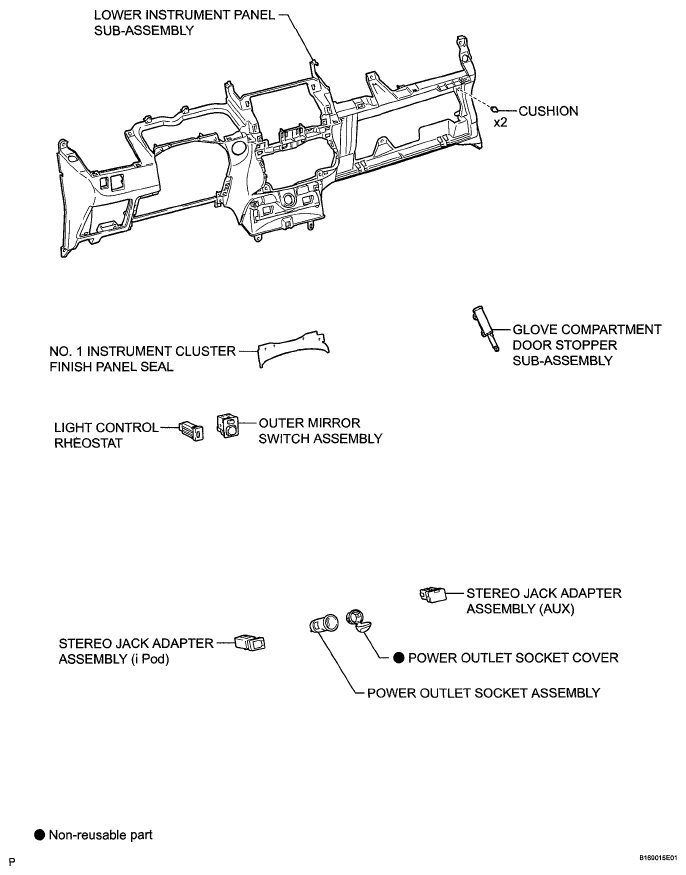

Fig 4: Identifying Lower Instrument Panel Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

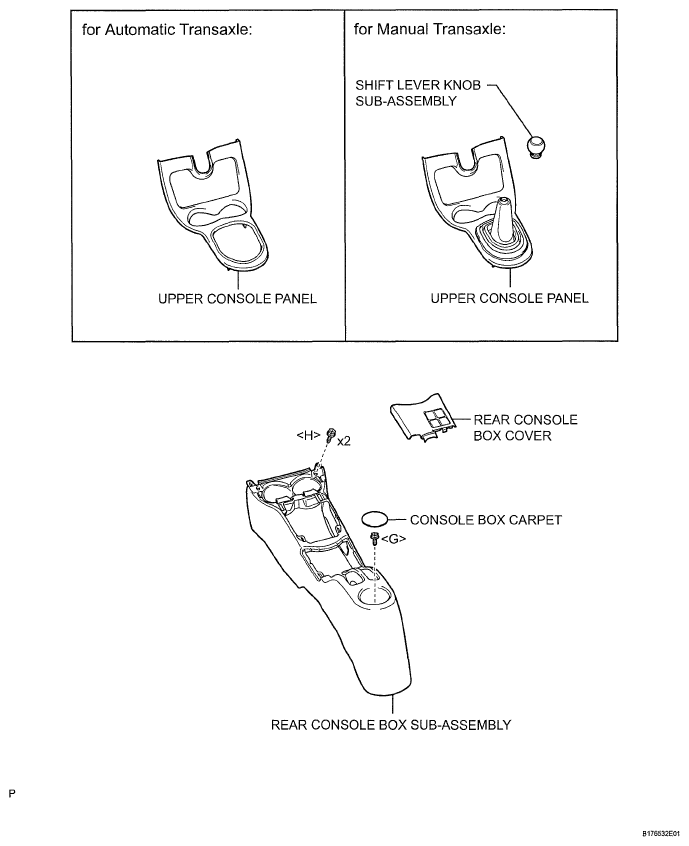

Fig 5: Identifying Lower Instrument Panel Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
