Ignition Switch: Inspection

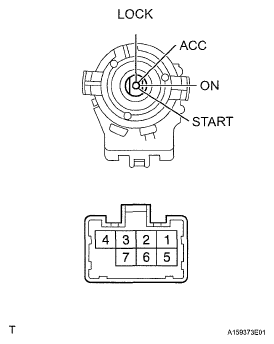

- INSPECT IGNITION SWITCH ASSEMBLY
- Check the resistance.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
RESISTANCE REFERENCE
| Tester Connection |
Condition |
Specified Condition |
| Between all terminals |
LOCK |
10 kΩ or higher |
| 2-4 |
ACC |
Below 1 Ω |
| 1-2-4 |
ON |
Below 1 Ω |
| 5-6 |
| 1-3-4 |
START |
Below 1 Ω |
| 5-6-7 |
