Ignition Switch: Installation

  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Engage the 2 claws and install the ignition switch assembly.
    2. Connect the connector.
      Fig 1: Identifying Ignition Switch Assembly Claws
      G05399827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING COLUMN COVER
    1. Install the screw in the position indicated in the illustration.
    2. Turn the steering wheel to the left and install the screw in the position indicated in the illustration.
    3. Turn the steering wheel to the right, and install the screw in the position indicated in the illustration.

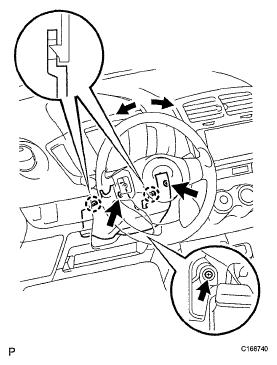

      Fig 2: Locating Steering Column Cover Screw
      G05399826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
