Exhaust Manifold: Components

Fig 1: Identifying Exhaust Manifold Replacement Components With Torque Specifications (1 Of 4)
G05399600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Exhaust Manifold Replacement Components (2 Of 4)
G05399601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Exhaust Manifold Replacement Components With Torque Specifications (3 Of 4)
G05399602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

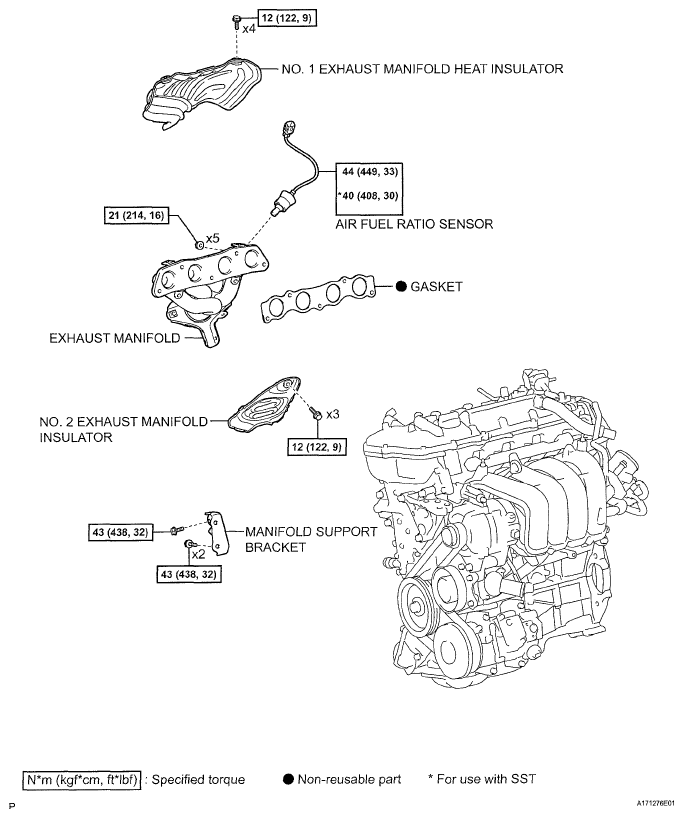

Fig 4: Identifying Exhaust Manifold Replacement Components With Torque Specifications (4 Of 4)
G05399603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
