Home >> Scion >> 2009 >> xD Automatic >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust Assembly >> Exhaust Pipe >> Components

Exhaust Pipe: Components

Fig 1: Identifying Exhaust Pipe Components (1 Of 2)
G05398805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

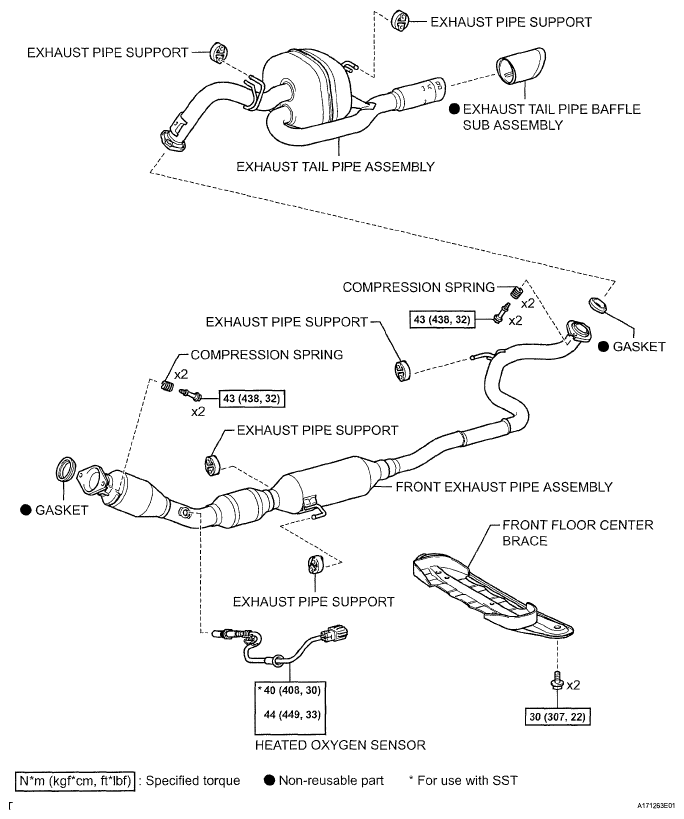

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
G05399613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
