Home >> Scion >> 2009 >> xD Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Ecu >> Components

Power Steering Ecu: Components

Fig 1: Power Steering ECU Replacement Components With Torque Specifications (1 Of 2)
G05401569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

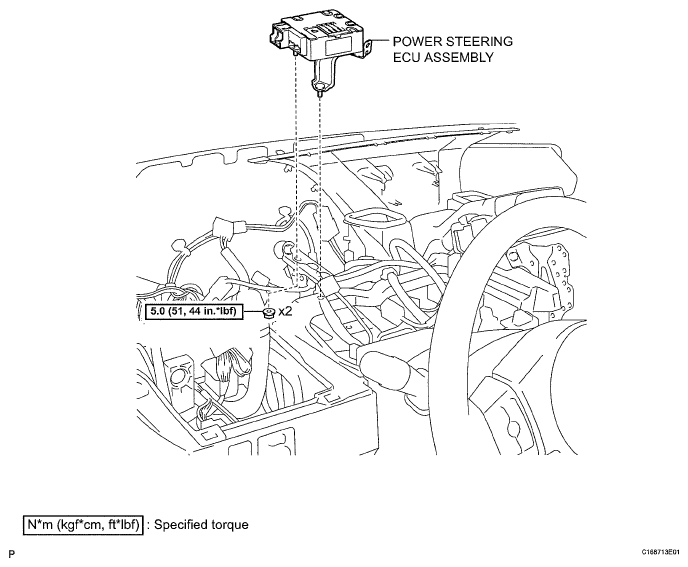

Fig 2: Power Steering ECU Replacement Components With Torque Specifications (2 Of 2)
G05401570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
