Power Steering Gear: Components

Fig 1: Power Steering Gear Replacement Components With Torque Specifications (1 Of 3)
G05401546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

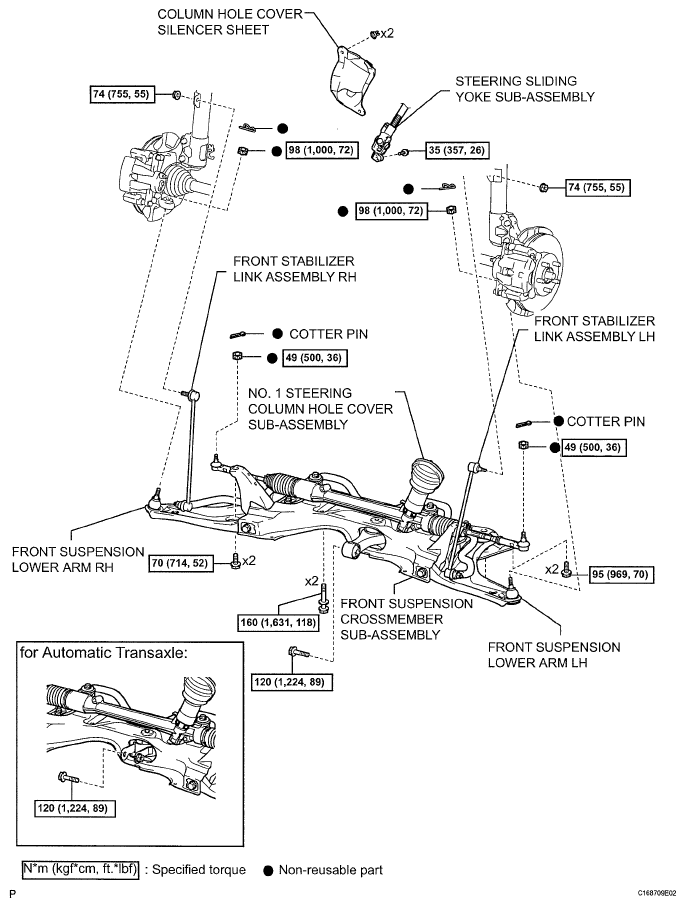

Fig 2: Power Steering Gear Replacement Components With Torque Specifications (2 Of 3)
G05401547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

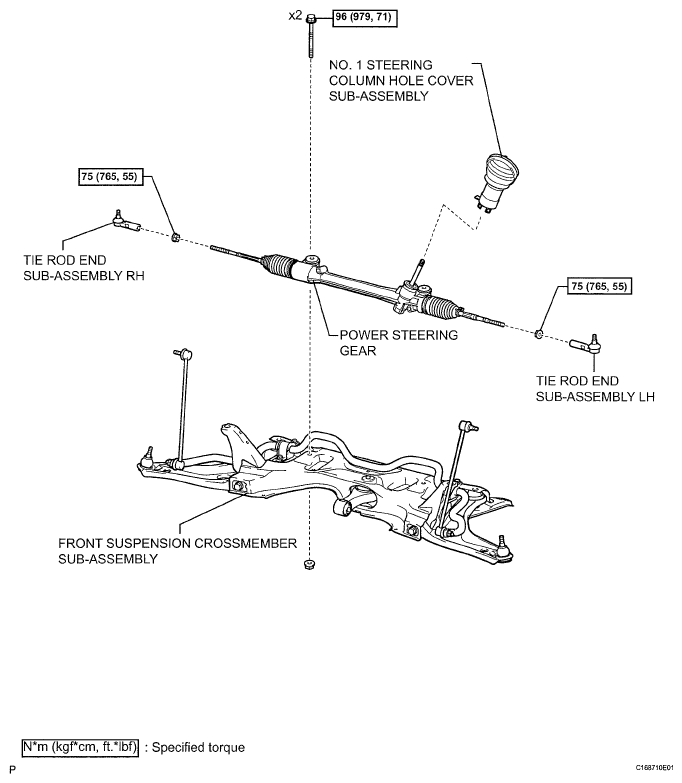

Fig 3: Power Steering Gear Replacement Components With Torque Specifications (3 Of 3)
G05401548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
