Home >> Scion >> 2009 >> xD Standard >> Repair and Diagnosis >> Transmission >> C50 Manual Transaxle >> Shift Lever Assembly >> Components

Shift Lever Assembly: Components

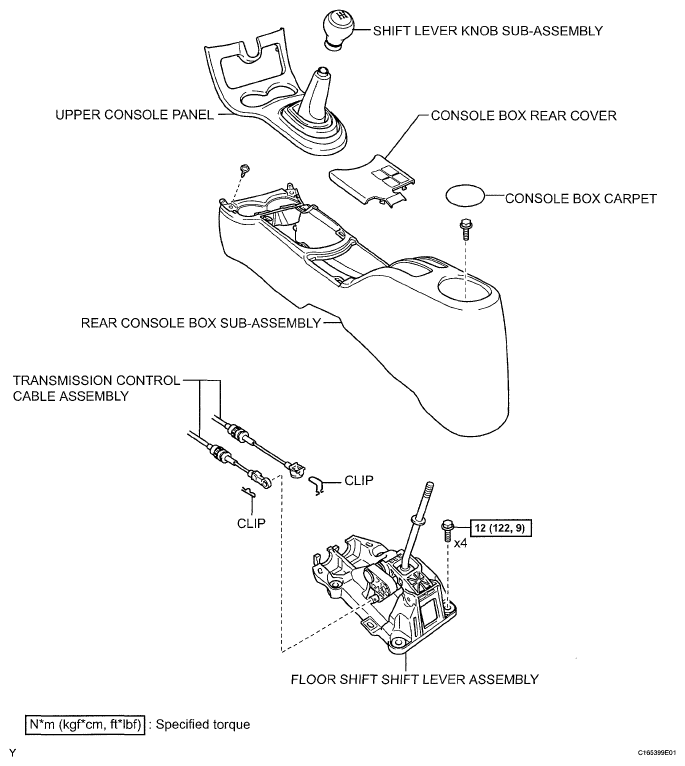

Fig 1: Shift Lever Assembly Replacement Components With Torque Specifications
G05400470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
