Transmission Control Cable: Components

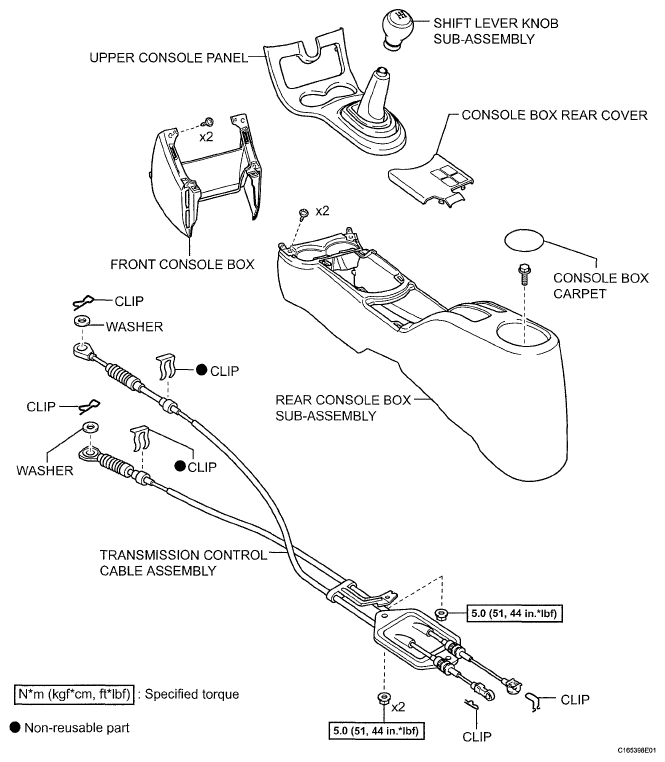

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
G05400478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
G05400479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
