Back Door Opener: Notes

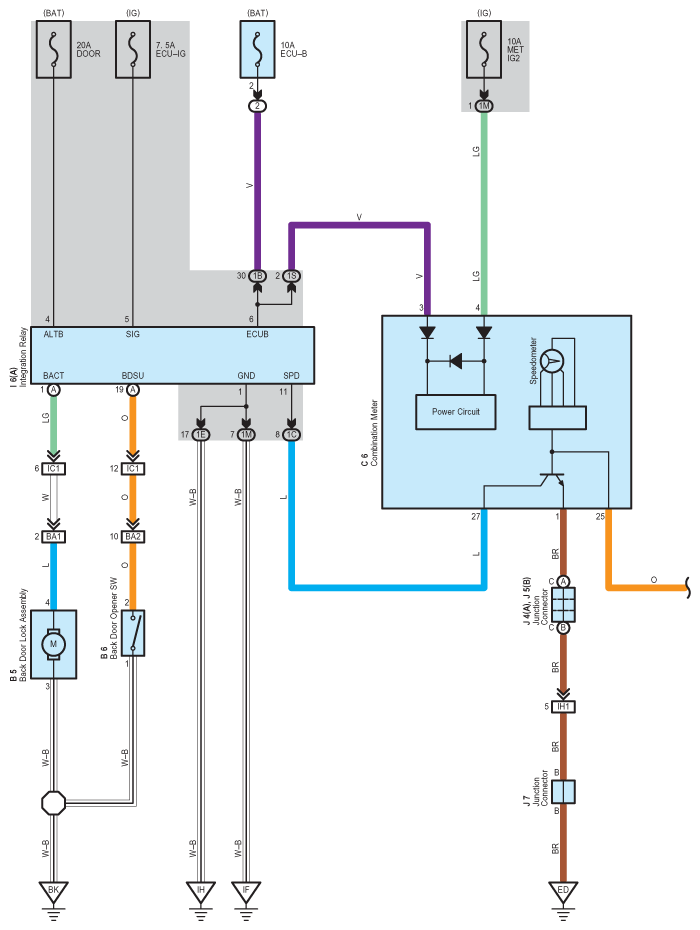

Fig 1: Back Door Opener - Circuit Diagram (1 Of 2)
G07585931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

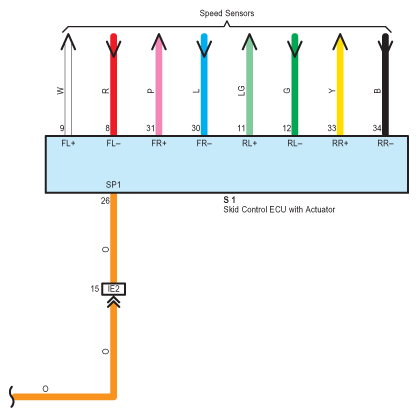

Fig 2: Back Door Opener - Circuit Diagram (2 Of 2)
G07585932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
