Home >> Scion >> 2010 >> tC Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight >> Notes

OEM System Circuits: Headlight: Notes

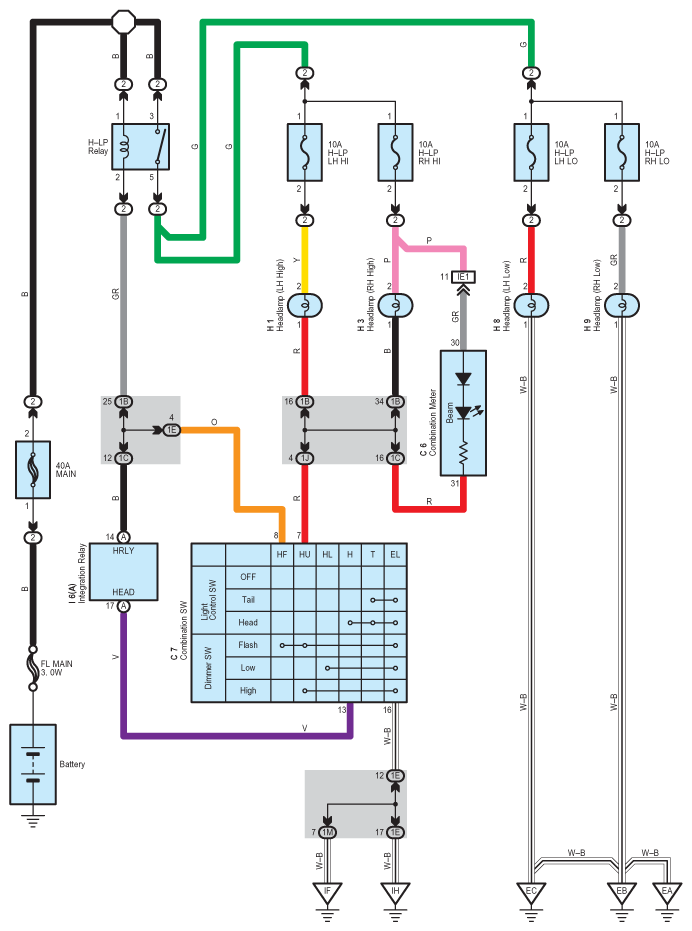

Fig 1: Headlight - Circuit Diagram
G07585909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
