Interior Light: Notes

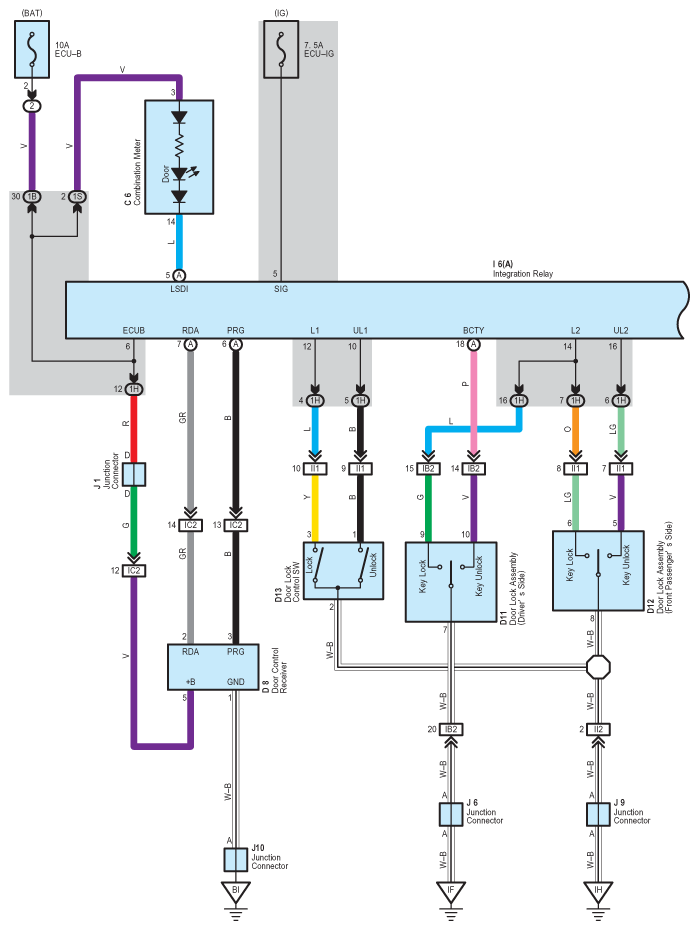

Fig 1: Interior Light - Circuit Diagram (1 Of 3)
G07585912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

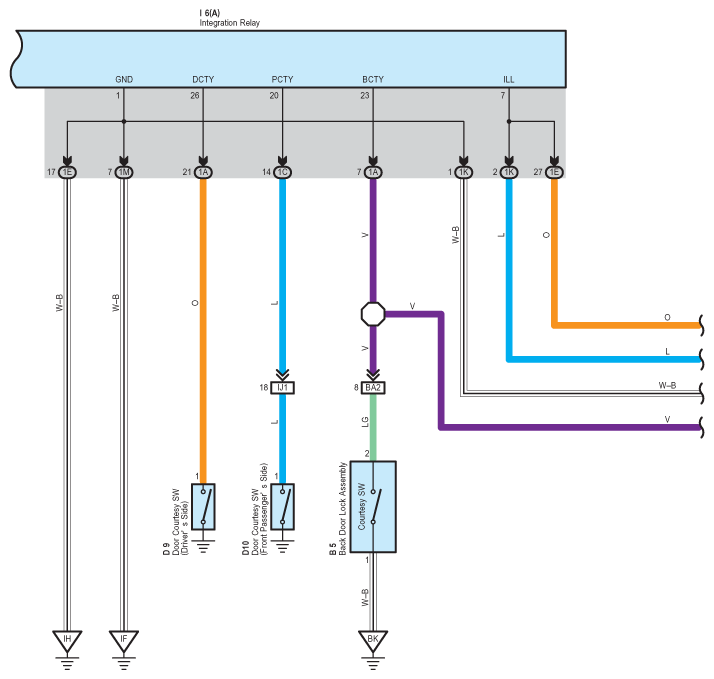

Fig 2: Interior Light - Circuit Diagram (2 Of 3)
G07585913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

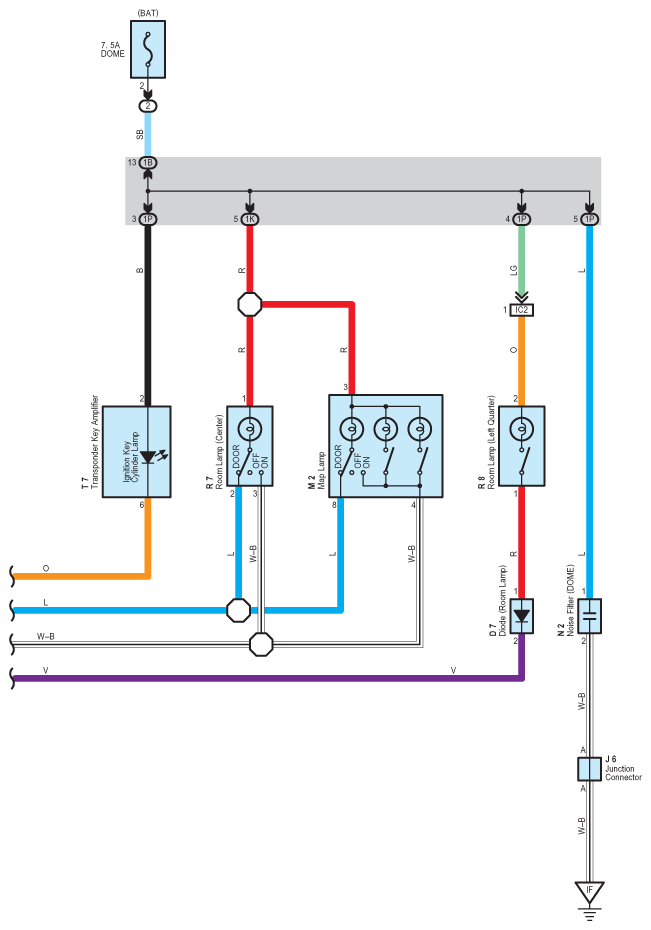

Fig 3: Interior Light - Circuit Diagram (3 Of 3)
G07585914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
