Power Source: Notes

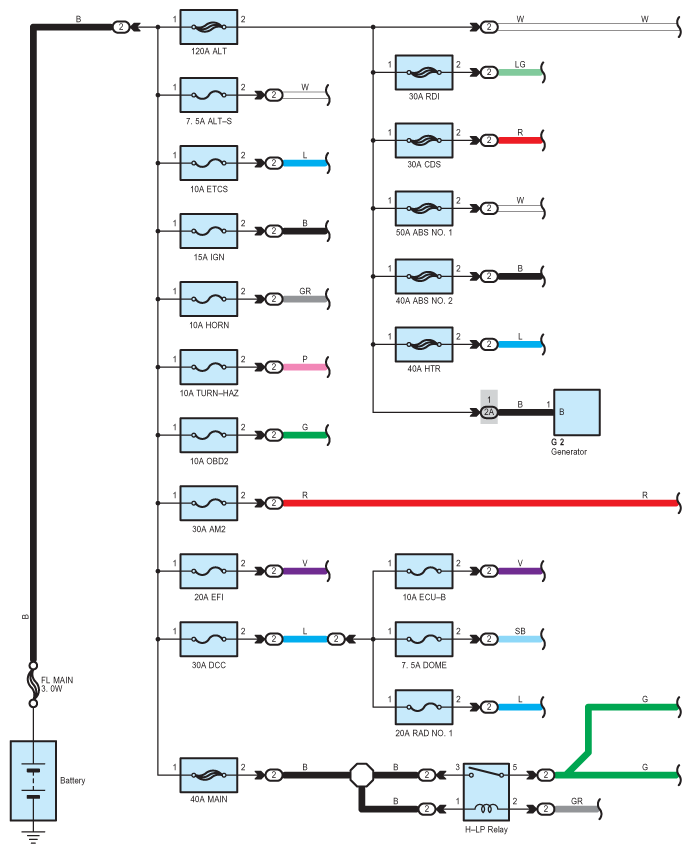

Fig 1: Power Source - Circuit Diagram (1 Of 2)
G07585894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

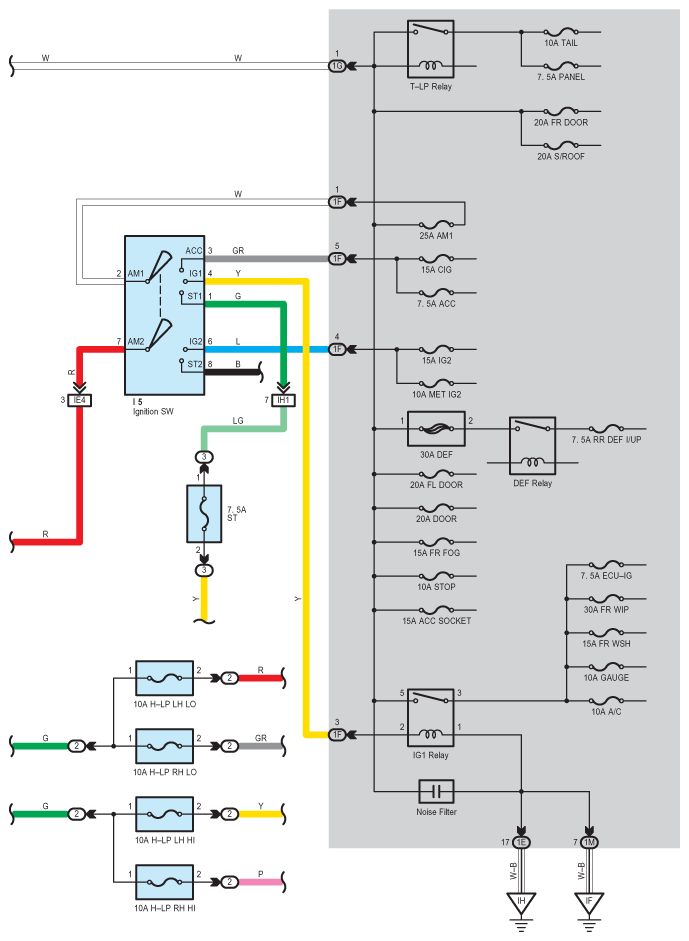

Fig 2: Power Source - Circuit Diagram (2 Of 2)
G07585895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
