Home >> Scion >> 2010 >> tC Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Starting >> Notes

OEM System Circuits: Starting: Notes

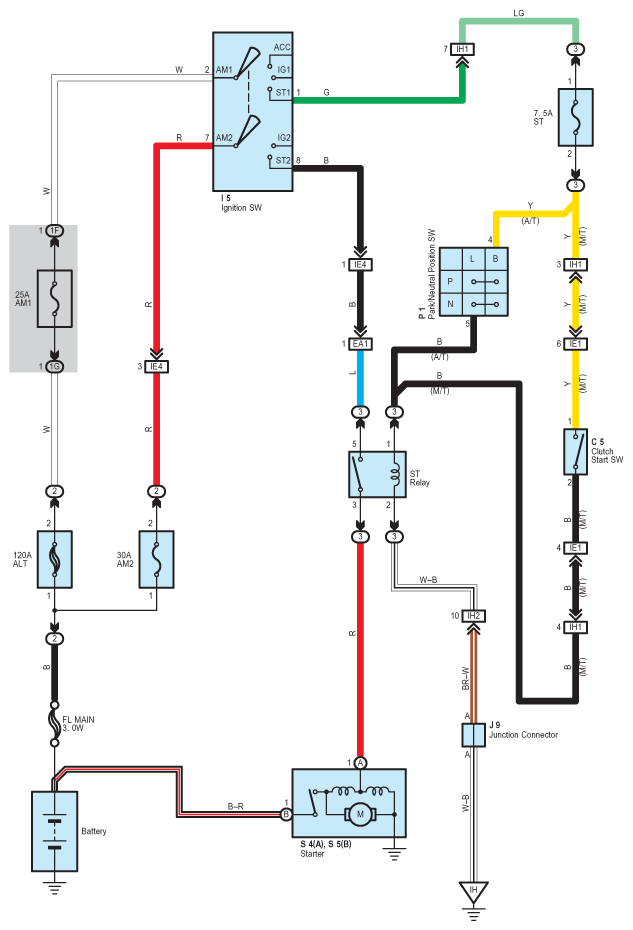

Fig 1: Starting - Circuit Diagram
G07585896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
