Engine Control: Notes

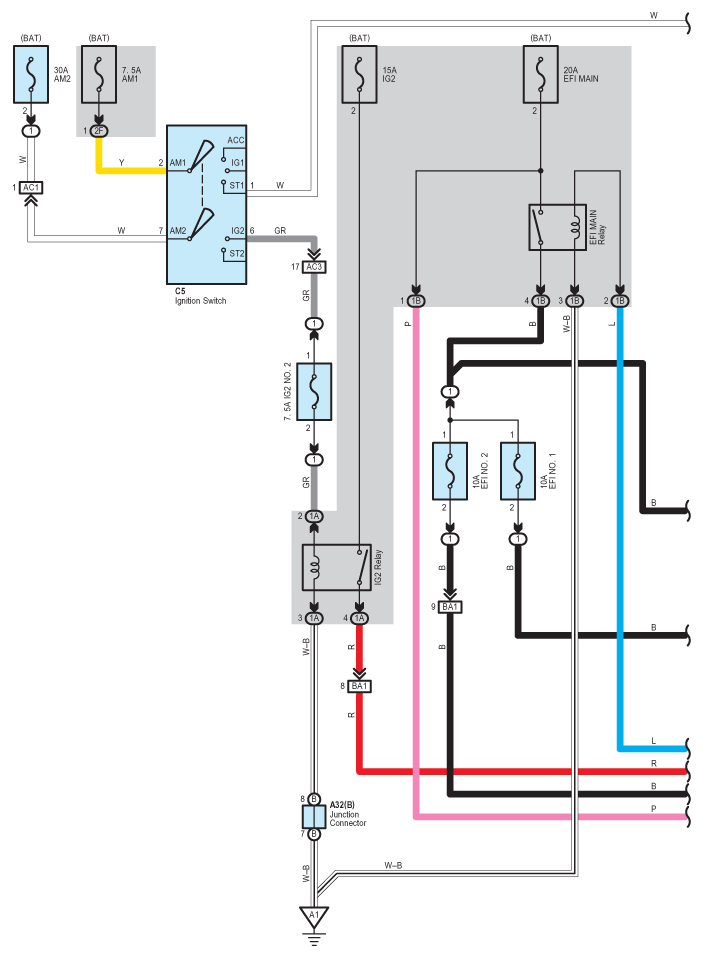

Fig 1: Engine Control - Circuit Diagram (1 Of 9)

G07569293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

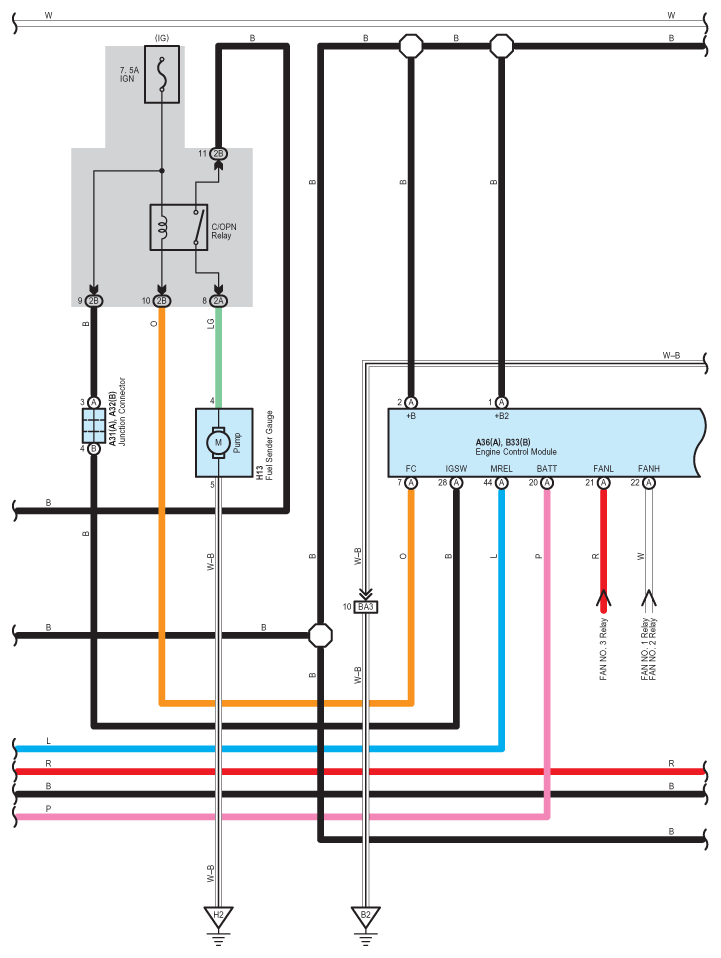

Fig 2: Engine Control - Circuit Diagram (2 Of 9)

G07569294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

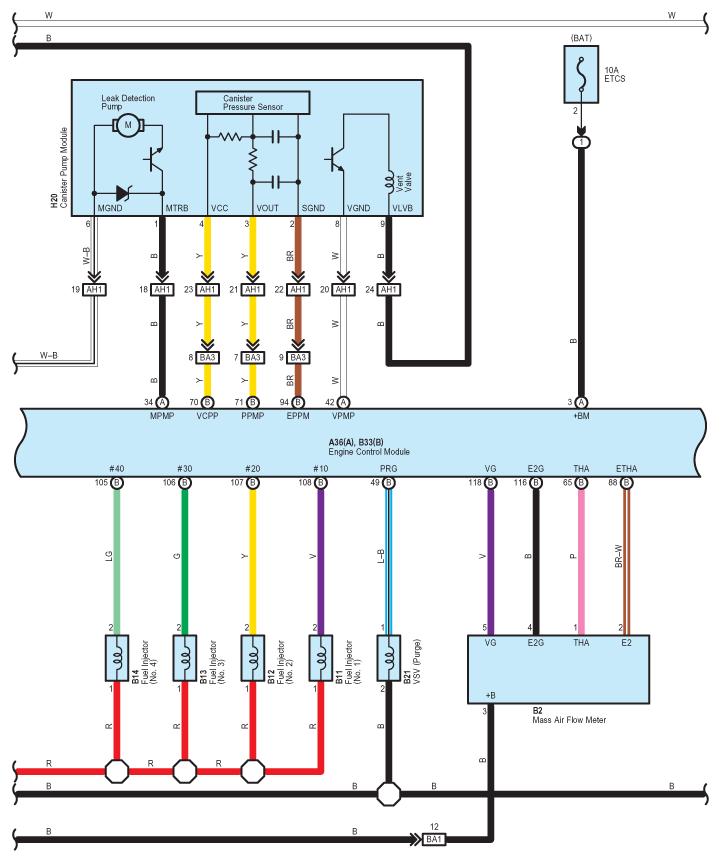

Fig 3: Engine Control - Circuit Diagram (3 Of 9)

G07569295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

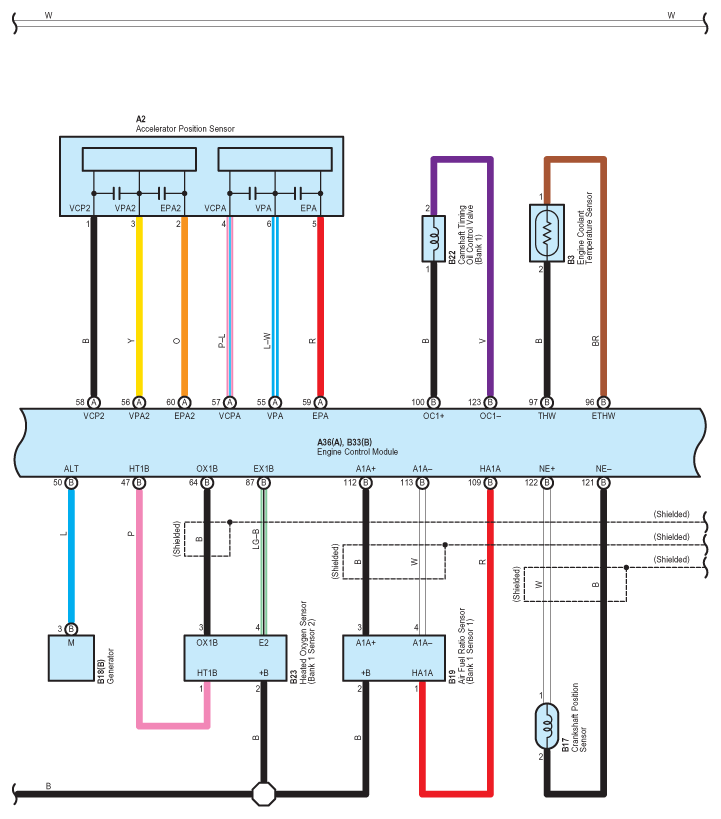

Fig 4: Engine Control - Circuit Diagram (4 Of 9)

G07569296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

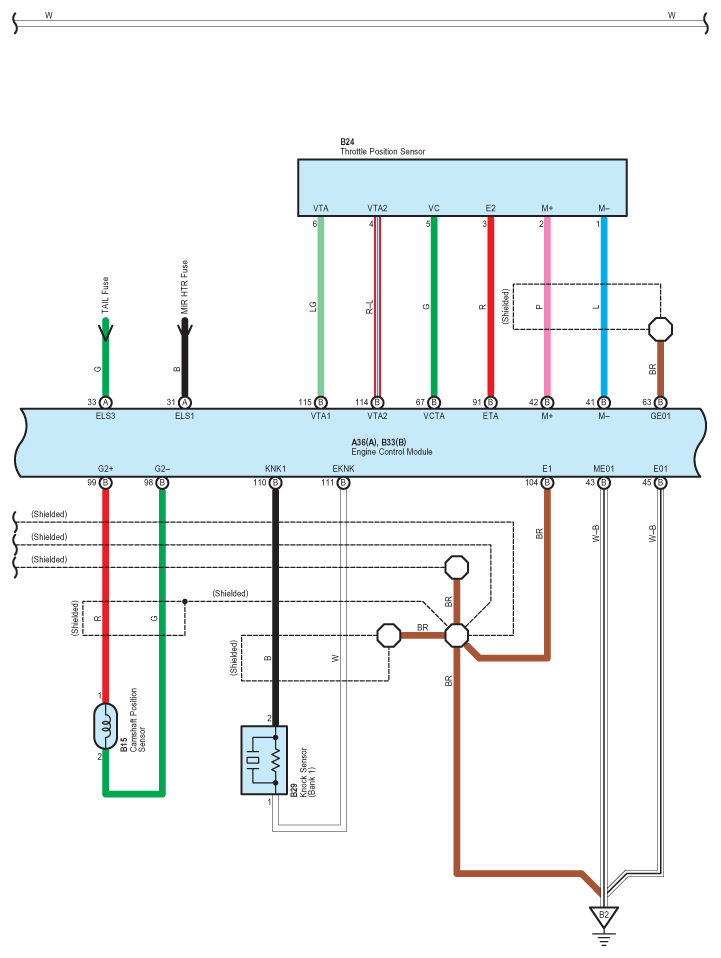

Fig 5: Engine Control - Circuit Diagram (5 Of 9)

G07569297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

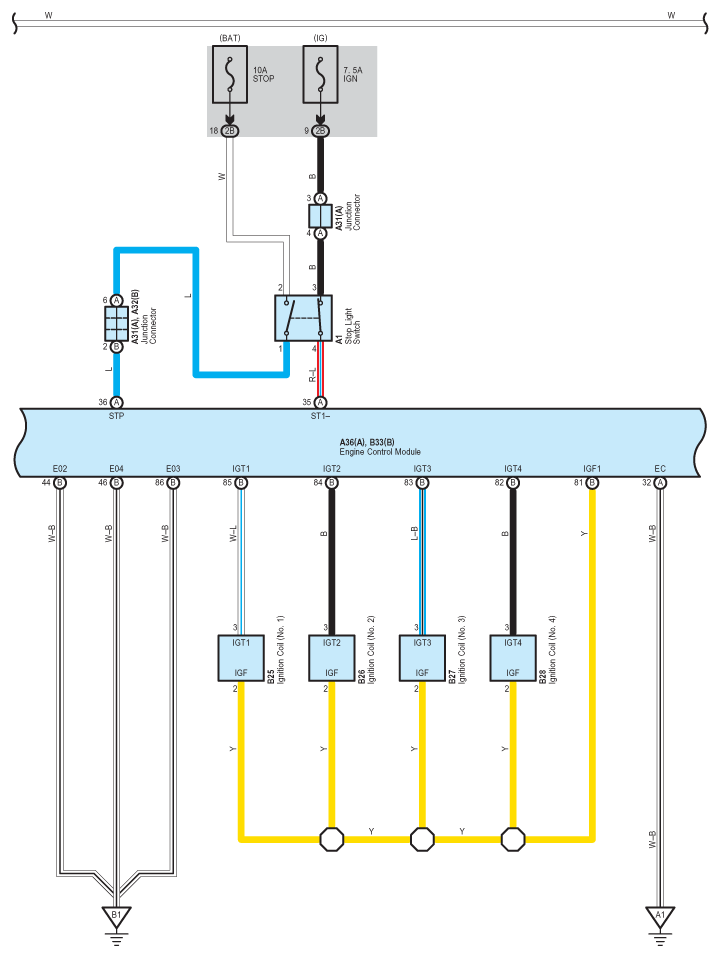

Fig 6: Engine Control - Circuit Diagram (6 Of 9)

G07569298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

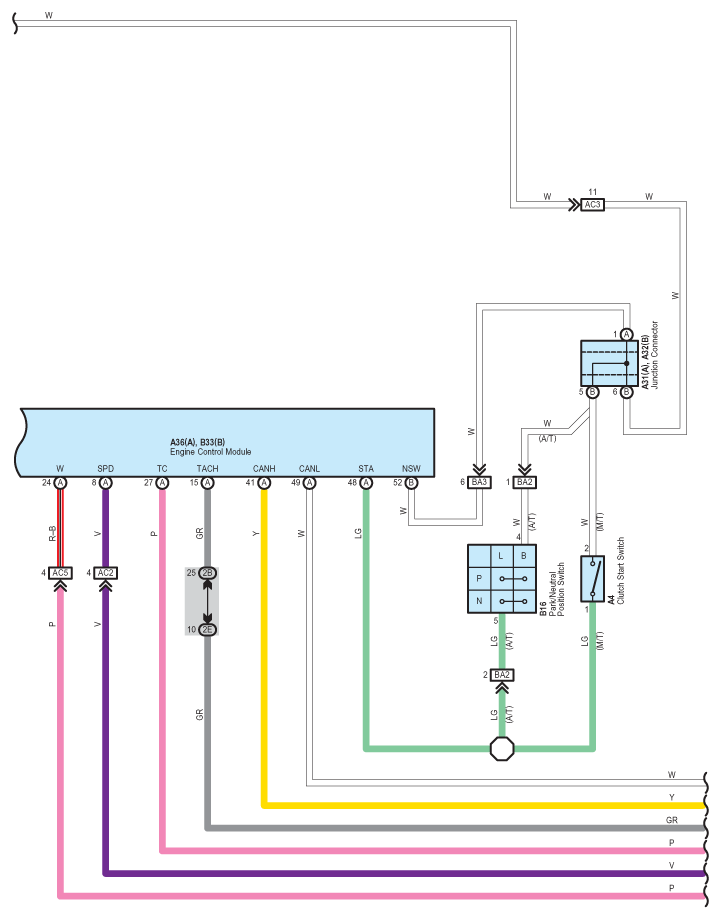

Fig 7: Engine Control - Circuit Diagram (7 Of 9)

G07569299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

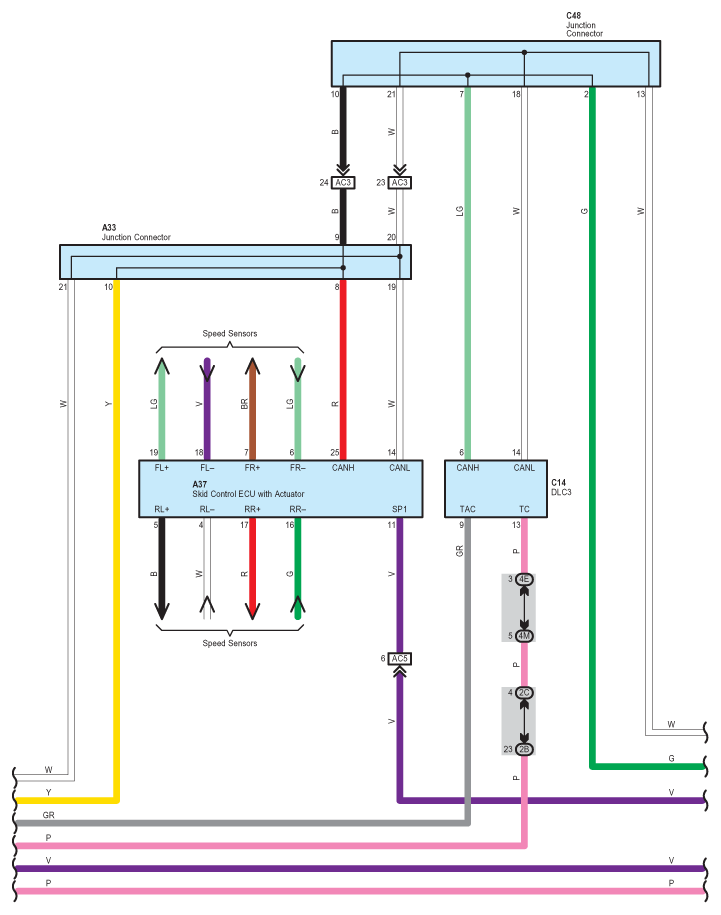

Fig 8: Engine Control - Circuit Diagram (8 Of 9)

G07569300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

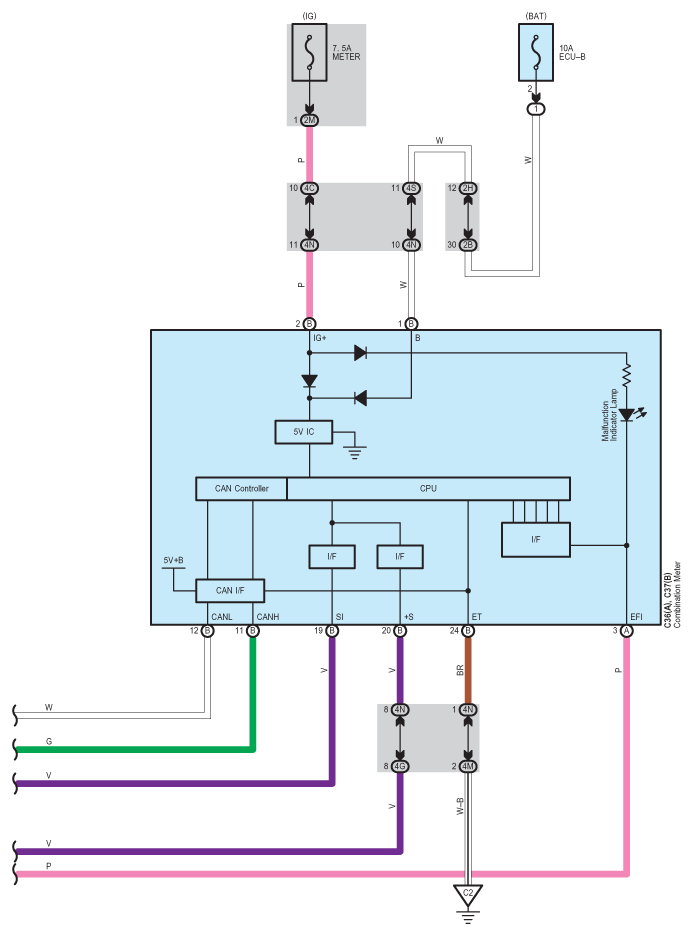

Fig 9: Engine Control - Circuit Diagram (9 Of 9)

G07569301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
