Home >> Scion >> 2010 >> xB Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Stop Light >> Notes

Stop Light: Notes

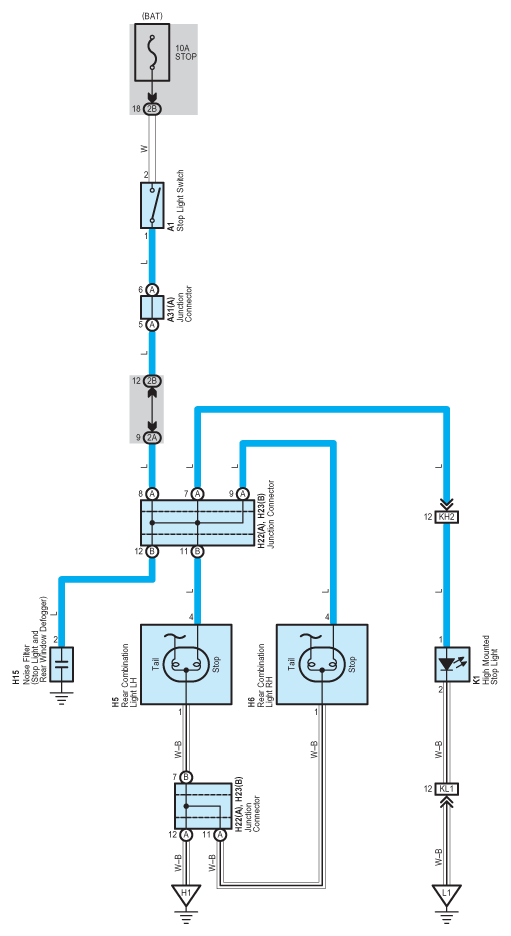

Fig 1: Stop Light - Circuit Diagram

G07569330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
