Air Fuel Ratio Sensor: Components: Illustration

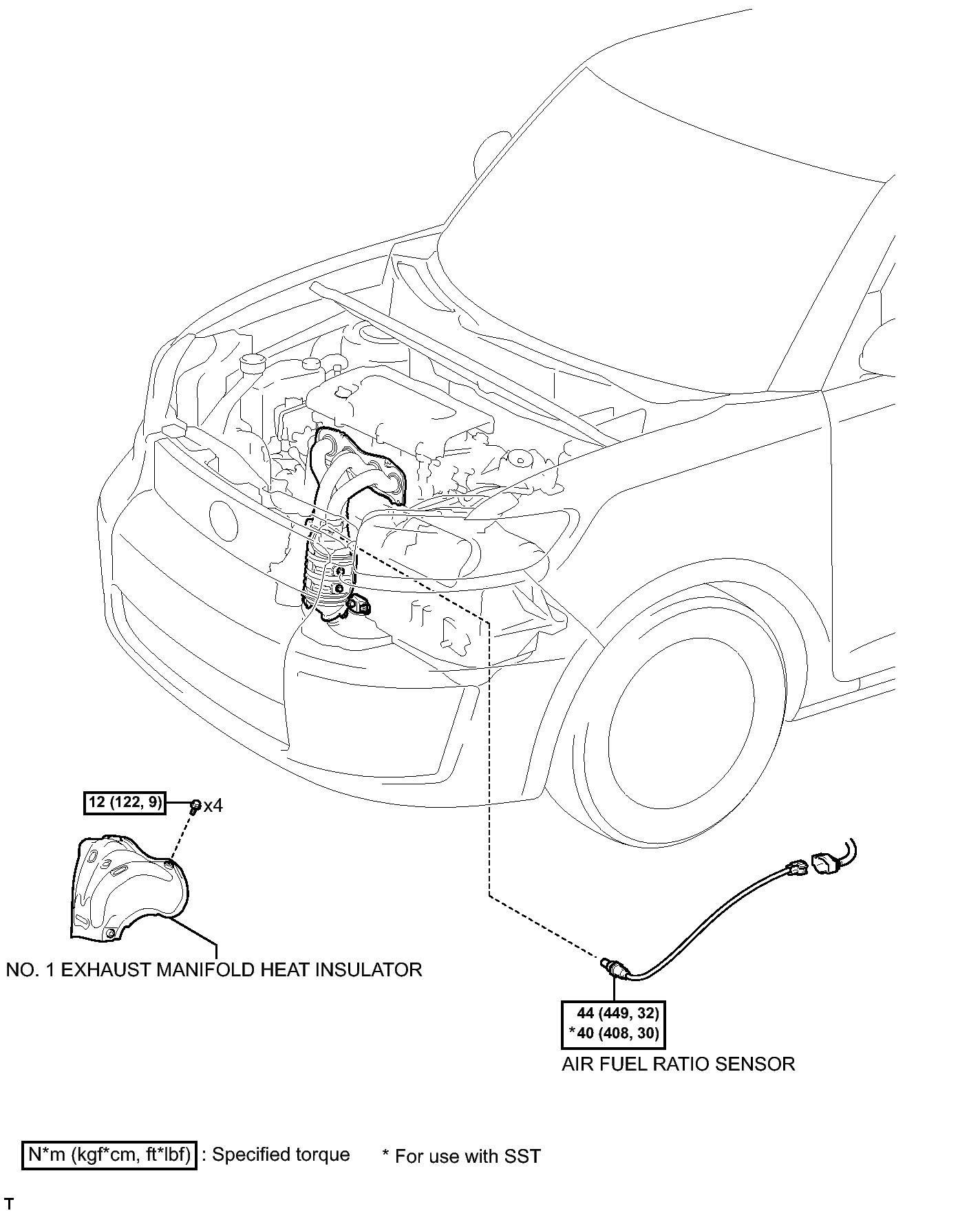

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications

GTY165865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
