Air Fuel Ratio Sensor: Removal: Removal

  1. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

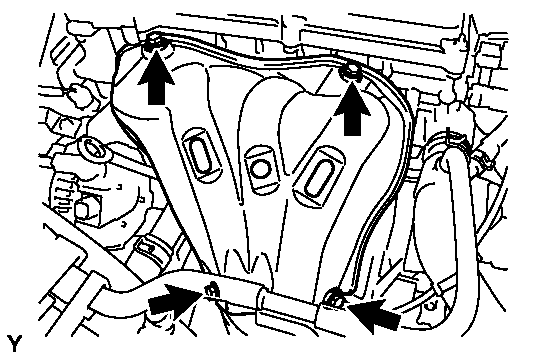

    Fig 1: View Of Exhaust Manifold Heat Insulator Bolts
    GTY160869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts and the No. 1 exhaust manifold heat insulator.
  2. REMOVE AIR FUEL RATIO SENSOR

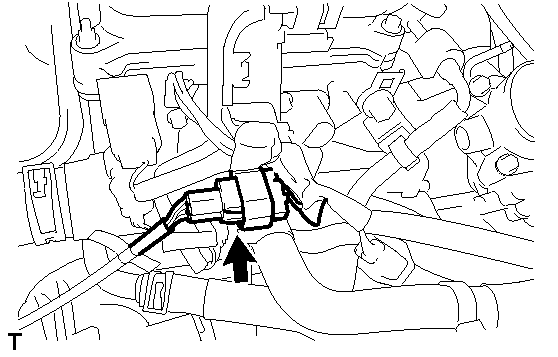

    Fig 2: View Of Air Fuel Ratio Sensor Connector
    GTY164376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the air fuel ratio sensor connector.
    2. Using SST, remove the air fuel ratio sensor.
      • SST: 09224-00010

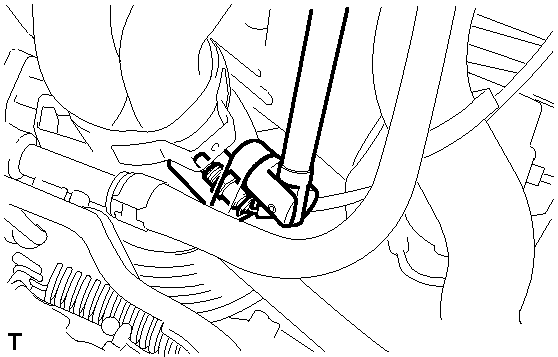

      Fig 3: Identifying Air Fuel Ratio Sensor
      GTY160879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
