Crankshaft Position Sensor: Components: Illustration

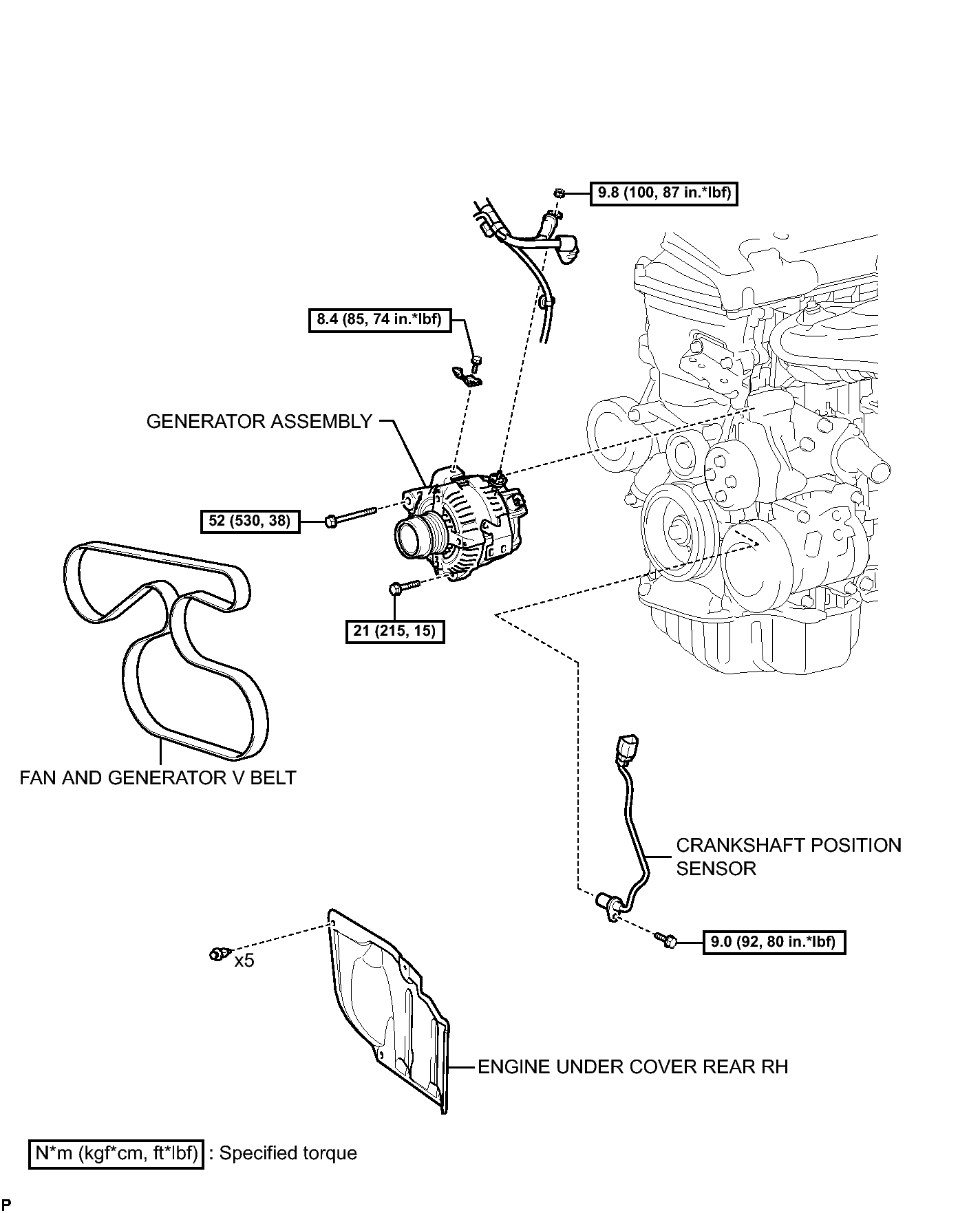

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications

GTY160949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
