Home >> Scion >> 2010 >> xD Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Stop Light >> Notes

Stop Light: Notes

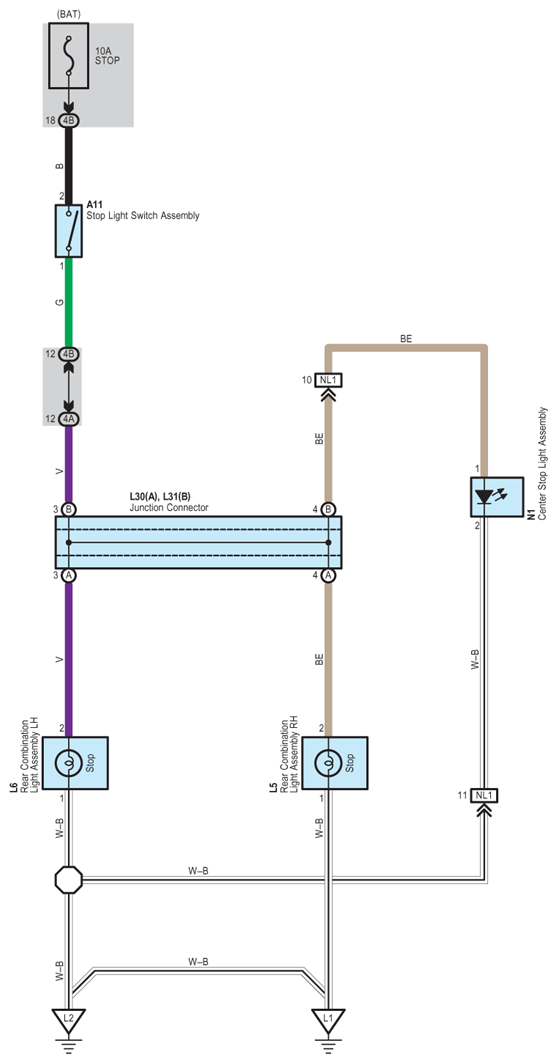

Fig 1: Stop Light - Circuit Diagram
G07571146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
