Throttle Body: Inspection: Inspection

  1. INSPECT THROTTLE BODY ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

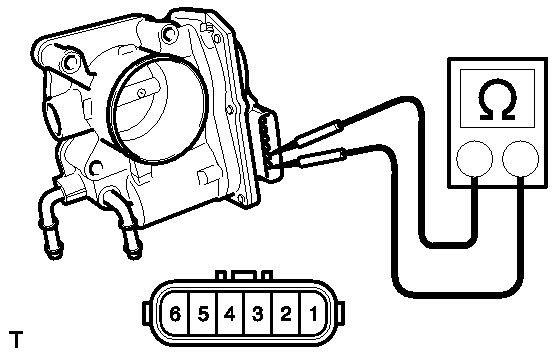

      Fig 1: Measuring Resistance Between Throttle Body Connector Terminals
      GTY161167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Condition Specified Condition
      1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω

      If the result is not as specified, replace the throttle body assembly.
