VSC Off Switch: Installation: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC off switch.

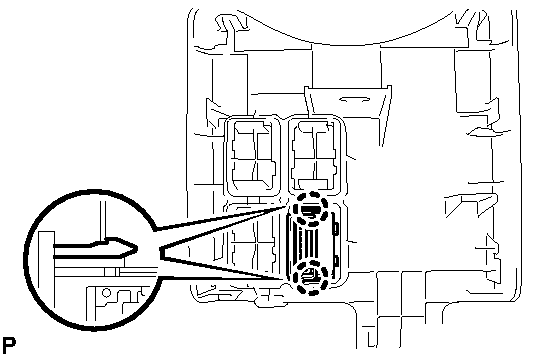

  Fig 1: Identifying VSC Off Switch Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CONSOLE BOX COVER . Refer to INSTALLATION - Step 3
INSPECT WARNING LIGHT AND INDICATOR LIGHT
Refer to TEST MODE PROCEDURE
