Scion
>>
2011
>>
tC Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Back-Up Light
>>
Notes
Back-Up Light: Notes

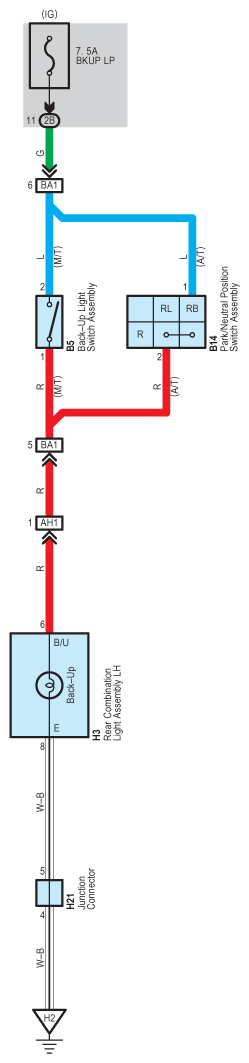

Fig 1: Back-Up Light - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
