Interior Light: Notes

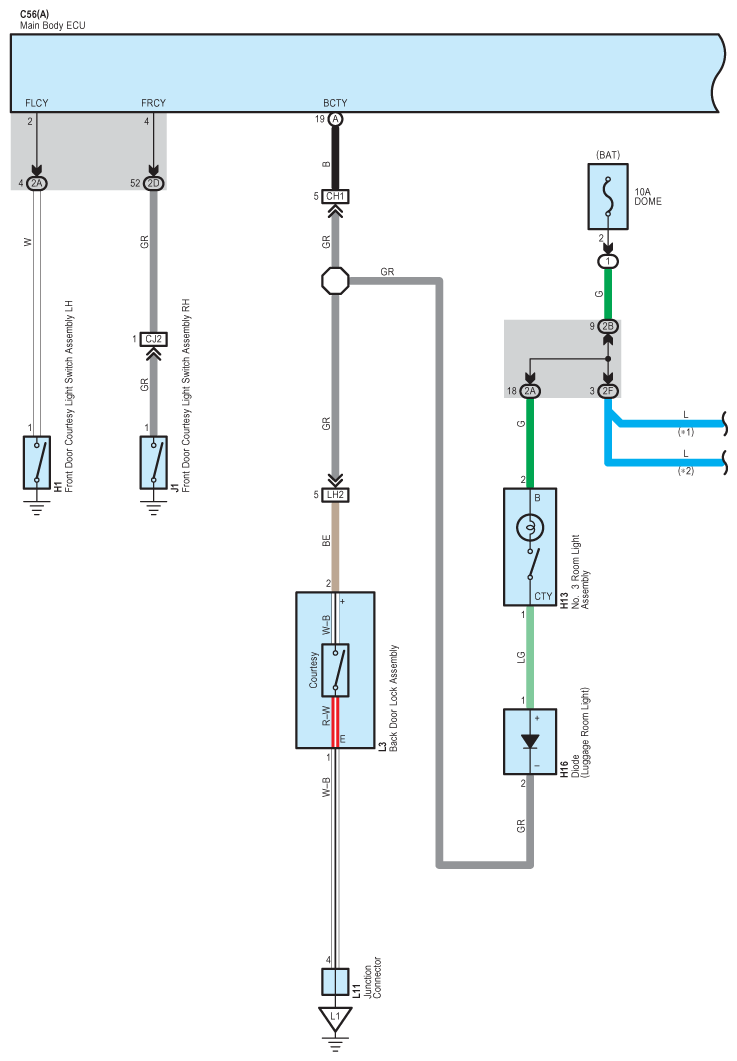

Fig 1: Interior Light - Circuit Diagram (1 Of 4)
G07619551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

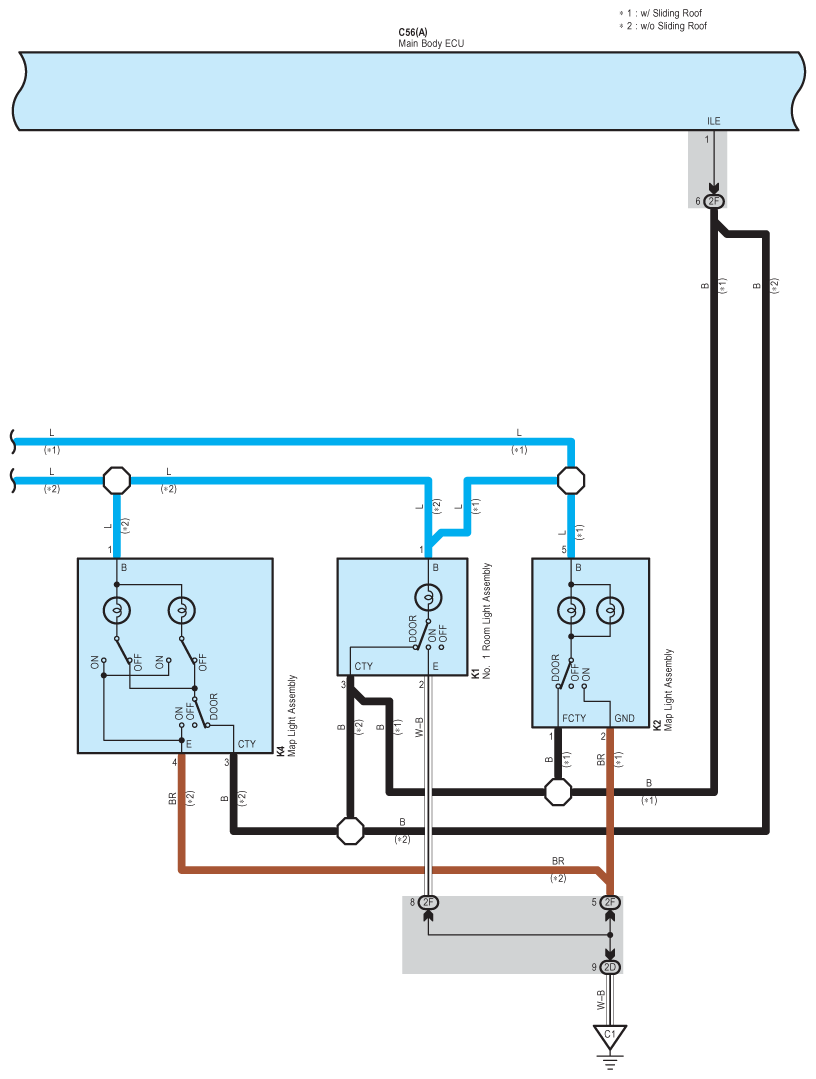

Fig 2: Interior Light - Circuit Diagram (2 Of 4)
G07619552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

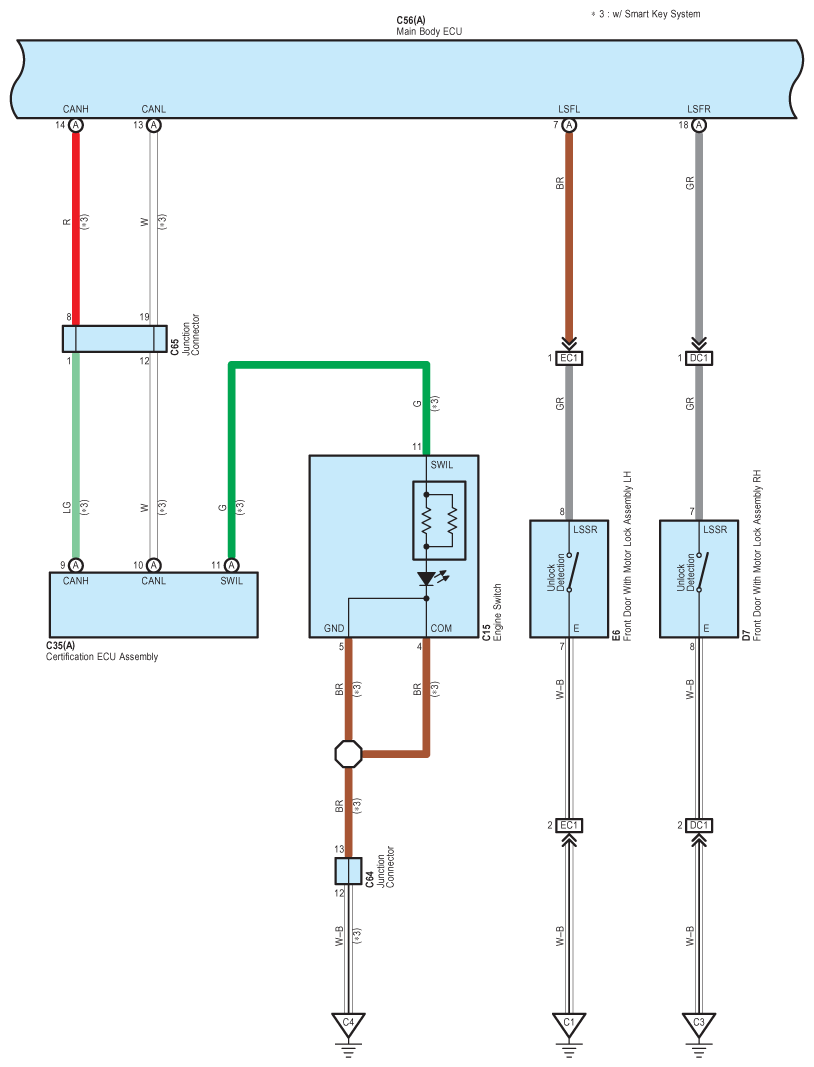

Fig 3: Interior Light - Circuit Diagram (3 Of 4)
G07619553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

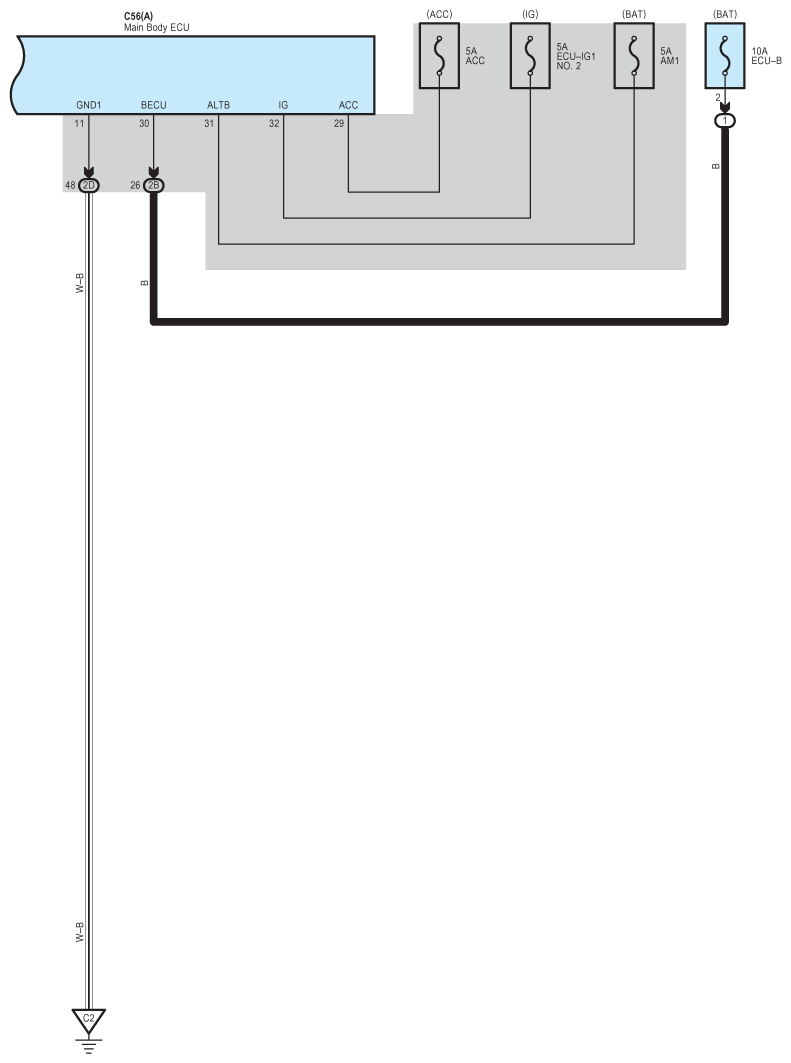

Fig 4: Interior Light - Circuit Diagram (4 Of 4)
G07619554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
