Home >> Scion >> 2011 >> tC Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System (Service Information) >> Fuel Injector >> Components >> Illustration

Fuel Injector: Components: Illustration

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 of 2)
GTY312967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

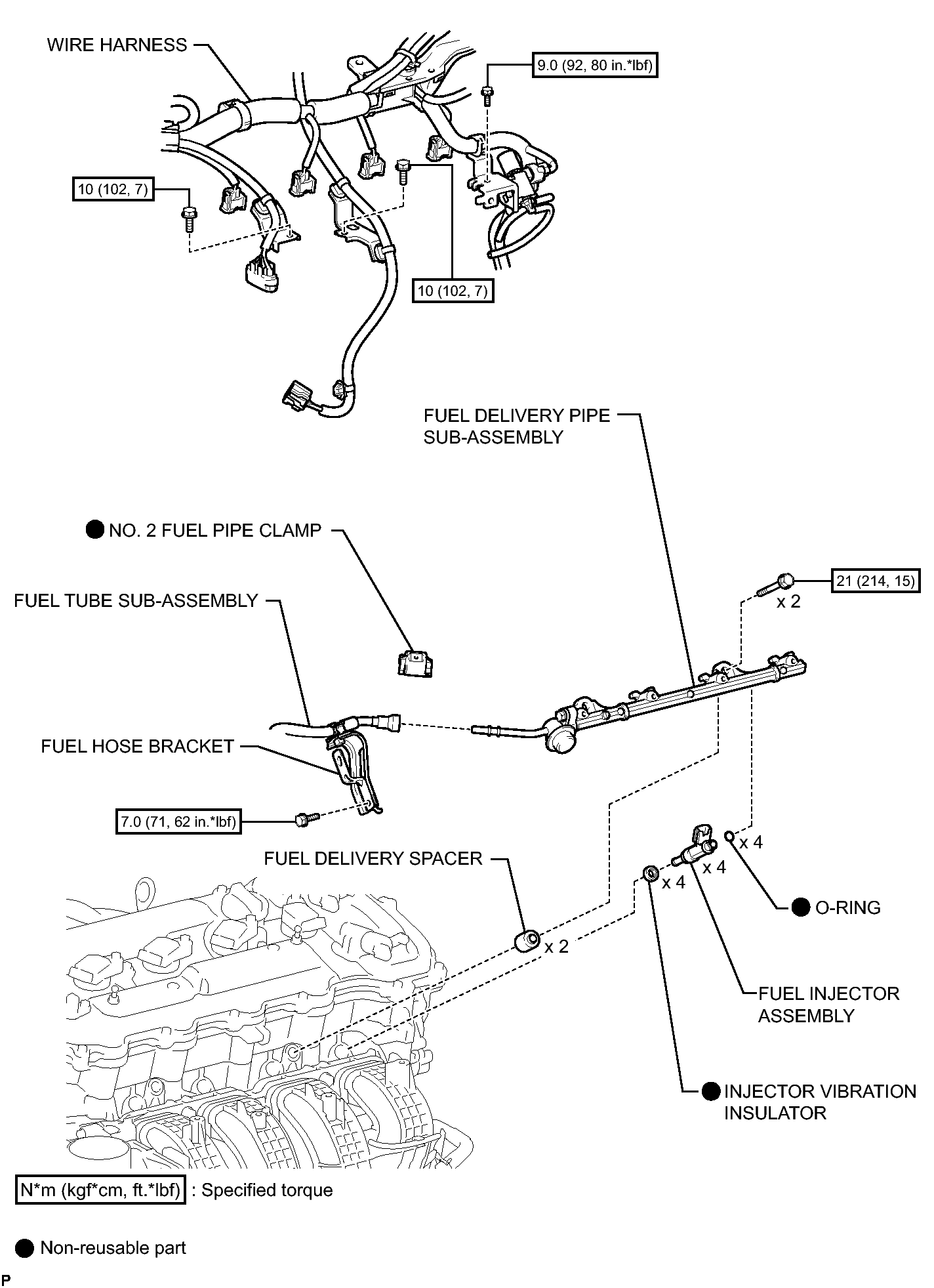

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 of 2)
GTY313204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
