Interior Light: Notes

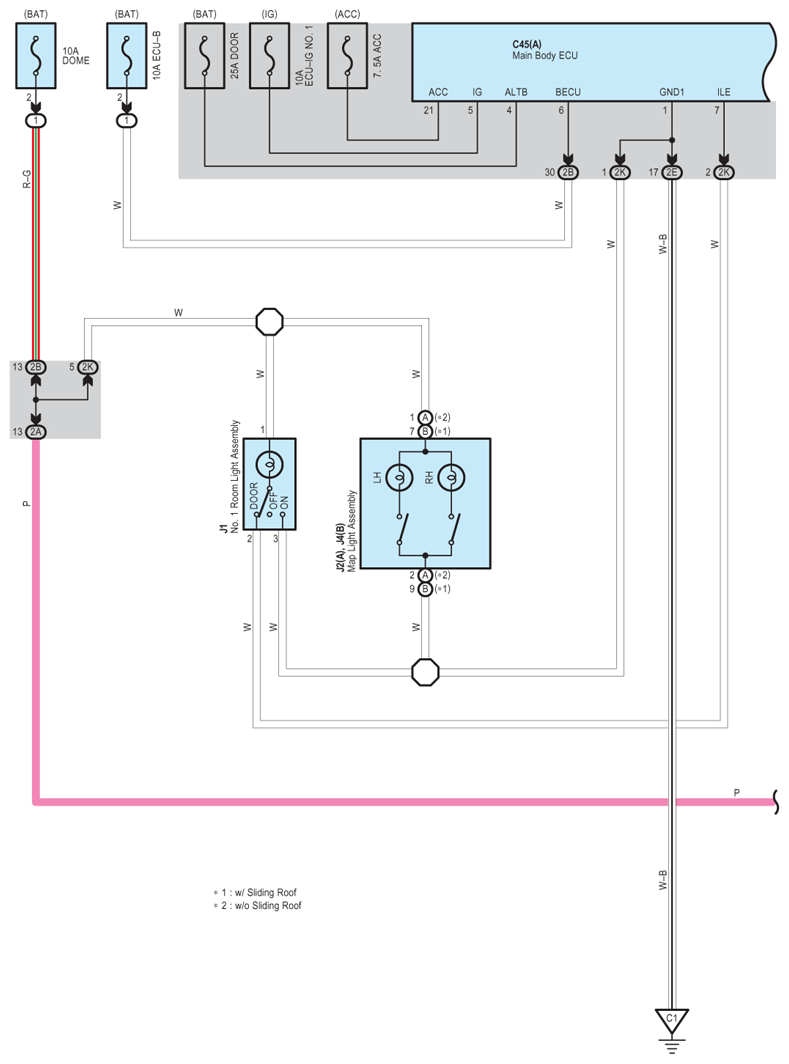

Fig 1: Interior Light - Circuit Diagram (1 Of 3)
G07610273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

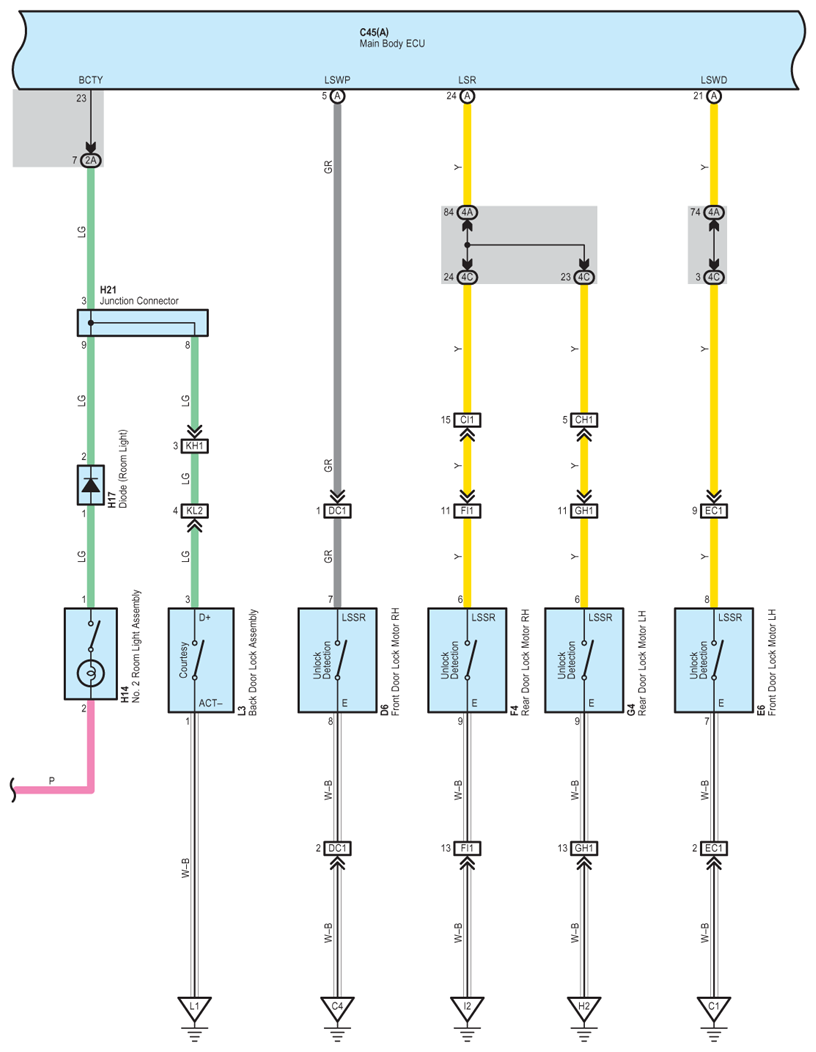

Fig 2: Interior Light - Circuit Diagram (2 Of 3)
G07610274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

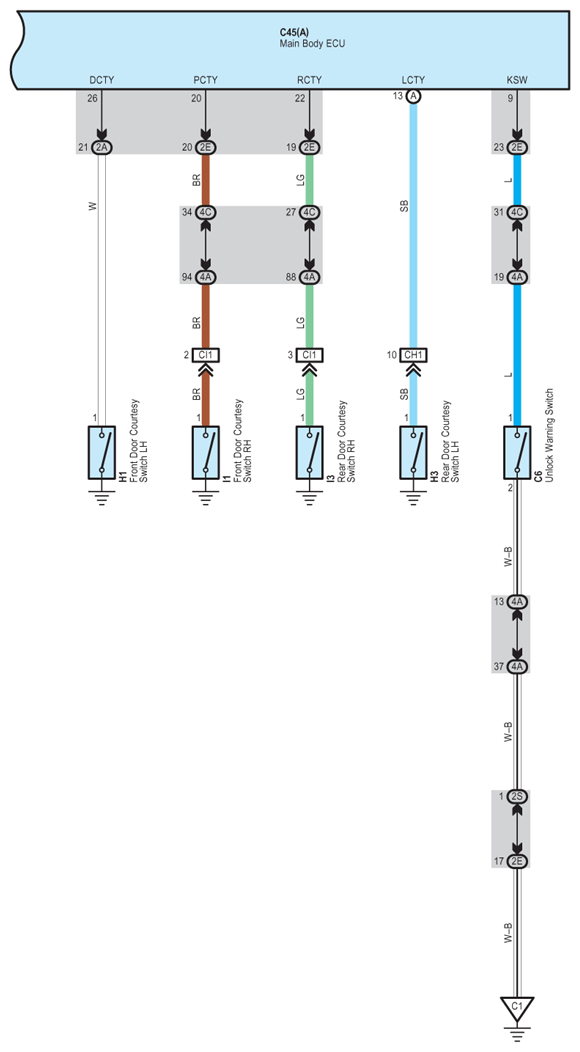

Fig 3: Interior Light - Circuit Diagram (3 Of 3)
G07610275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
