Home >> Scion >> 2011 >> xD Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Charging >> Notes

OEM System Circuits: Charging: Notes

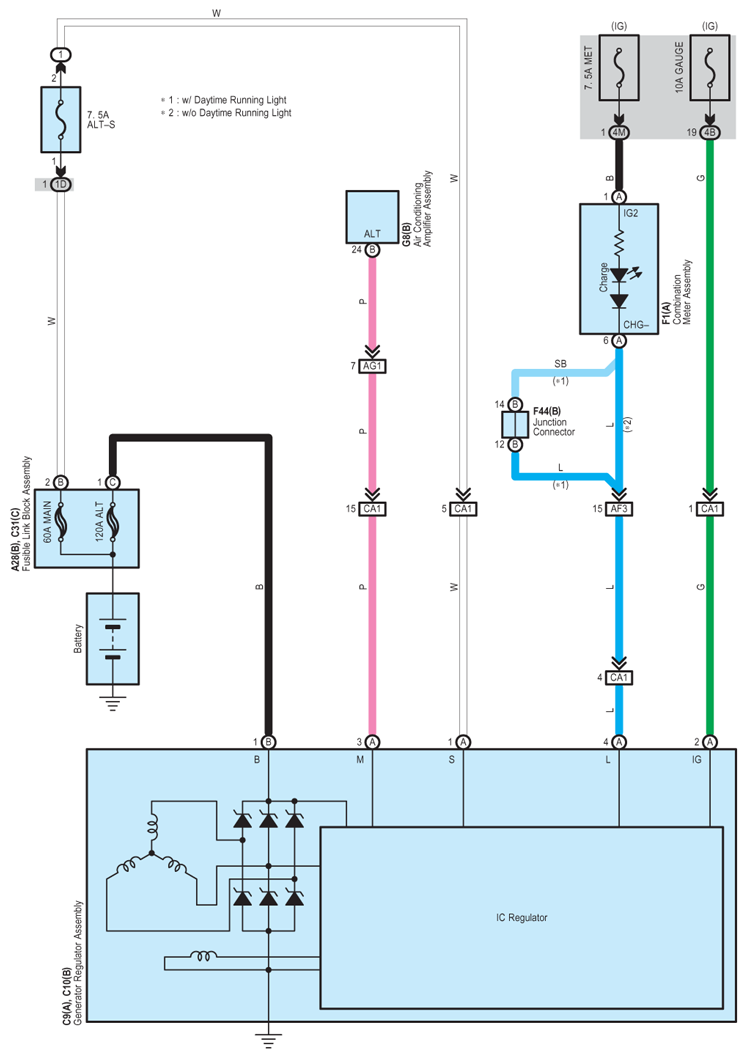

Fig 1: Charging - Circuit Diagram
G07596079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
