Ignition Switch: Installation: Installation

  1. INSTALL IGNITION SWITCH ASSEMBLY

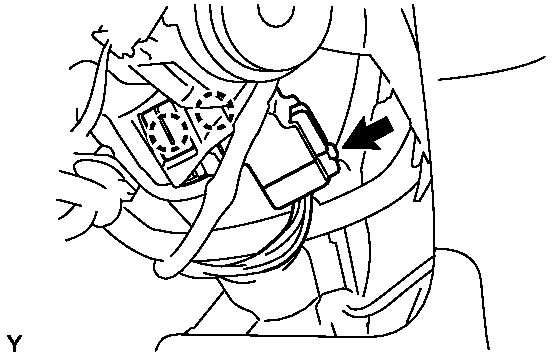

    Fig 1: Identifying Ignition Switch Assembly Claws
    GTY163205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 2 claws and install the ignition switch assembly.
    2. Connect the connector.
  2. INSTALL STEERING COLUMN COVER

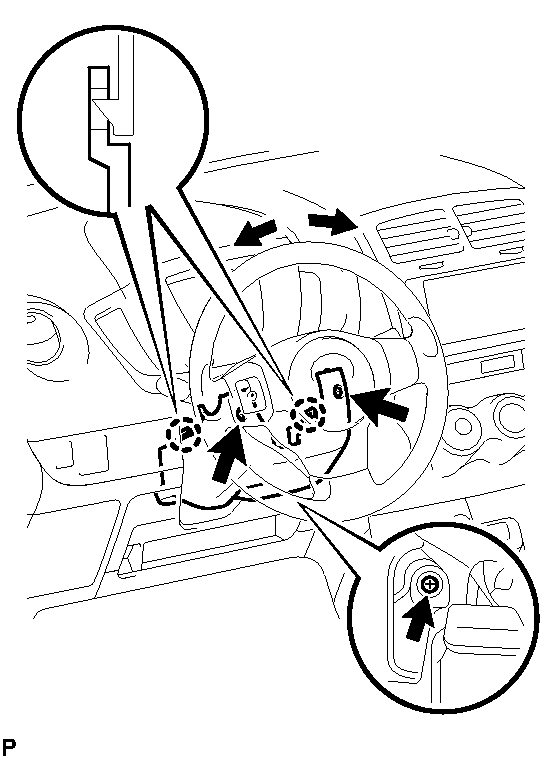

    Fig 2: Identifying Steering Column Cover Screw
    GTY164455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the screw in the position indicated in the illustration.
    2. Turn the steering wheel to the left and install the screw in the position indicated in the illustration.
    3. Turn the steering wheel to the right, and install the screw in the position indicated in the illustration.
