Shift Lever: Installation: Installation

INSTALL FLOOR SHIFT ASSEMBLY
1. Provisionally install the shift lever with the 4 bolts.

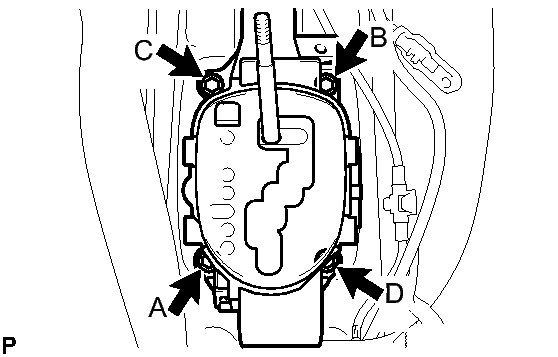

  Fig 1: Identifying Shift Lever Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not jam the wiring of the indicator light or shift lock.
2. Tighten the 4 bolts in order, from A to D.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
3. Install the shift lock control computer connector and indicator light connector.
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Turn the nut on the control cable and push in the lock.

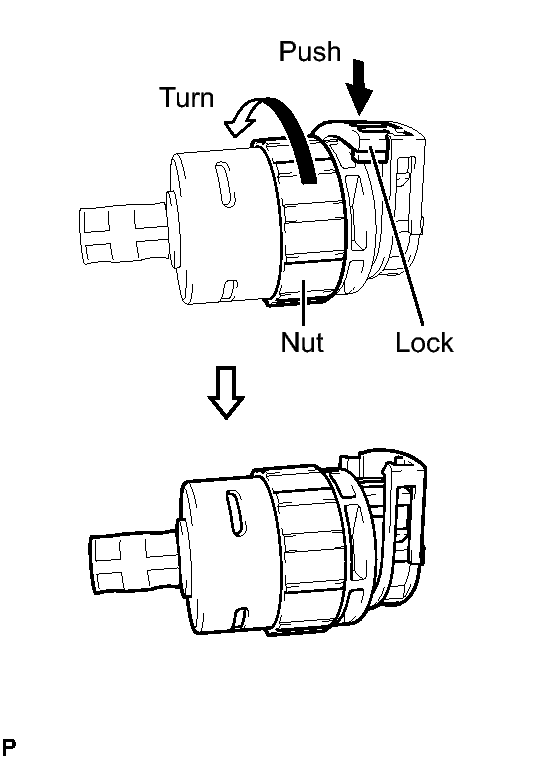

  Fig 2: Turning Nut Of Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable onto the shift lever retainer.

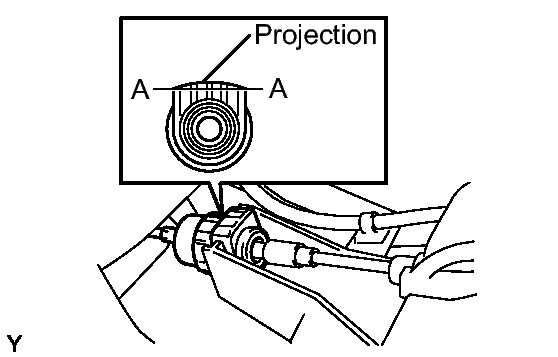

  Fig 3: Identifying Shift Lever Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  WARNING:
  - Install the cable with the projection of the cable outer facing upward.
  - After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.
3. Connect the control cable to the shift lever.

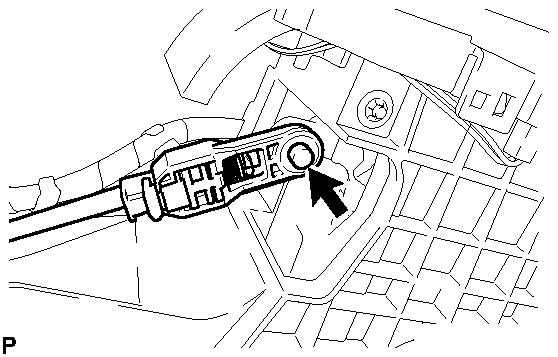

  Fig 4: Identifying Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the left side of the vehicle.
INSPECT SHIFT LEVER POSITION Refer to step 1
ADJUST SHIFT LEVER POSITION
1. Shift the shift lever to the N position.
2. Slide the adjuster case cover in the direction shown in the illustration and pull out the lock piece.

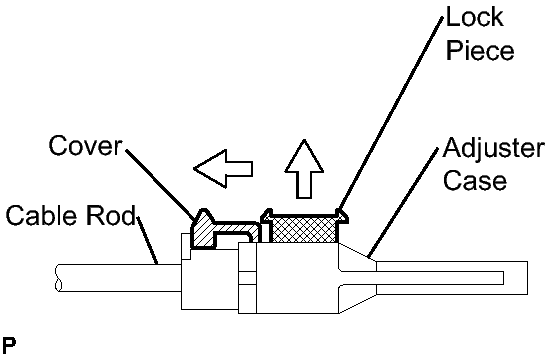

  Fig 5: Sliding Adjuster Case Cover And Pulling Out Lock Piece
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Gently pull the cable rod toward the rear of the vehicle by hand to pull the cable taut.
4. Press the lock piece into the adjuster case and lock it.

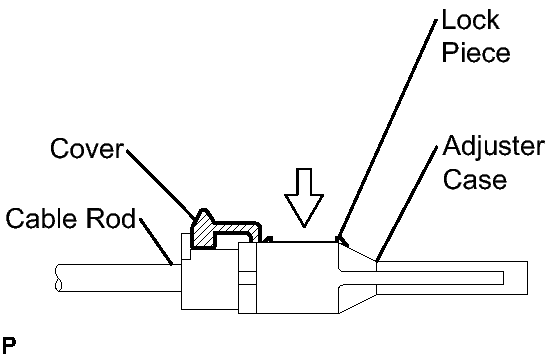

  Fig 6: Pressing Lock Piece Into Adjuster Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Slide the cover in the direction shown in the illustration.

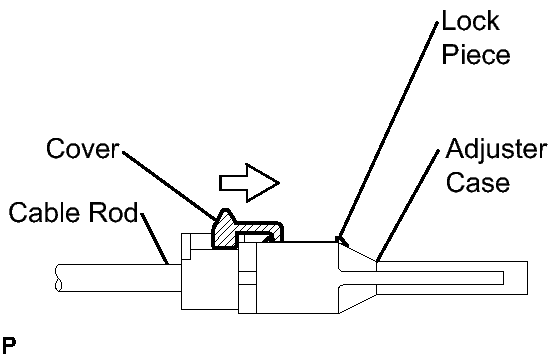

  Fig 7: Sliding Adjuster Case Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Slide the cover past the protrusion on the lock piece.
6. Inspect the operation after the adjustment.
INSTALL FRONT CONSOLE BOX . Refer to INSTALLATION - Step 16
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL CONSOLE BOX CARPET . Refer to INSTALLATION - Step 2
INSTALL REAR CONSOLE BOX COVER . Refer to INSTALLATION - Step 3
INSTALL UPPER CONSOLE PANEL . Refer to INSTALLATION - Step 4
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Install the shift lever knob sub-assembly onto the shift lever.
