Home >> Scion >> 2012 >> iQ >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Audio System >> Notes

Audio System: Notes

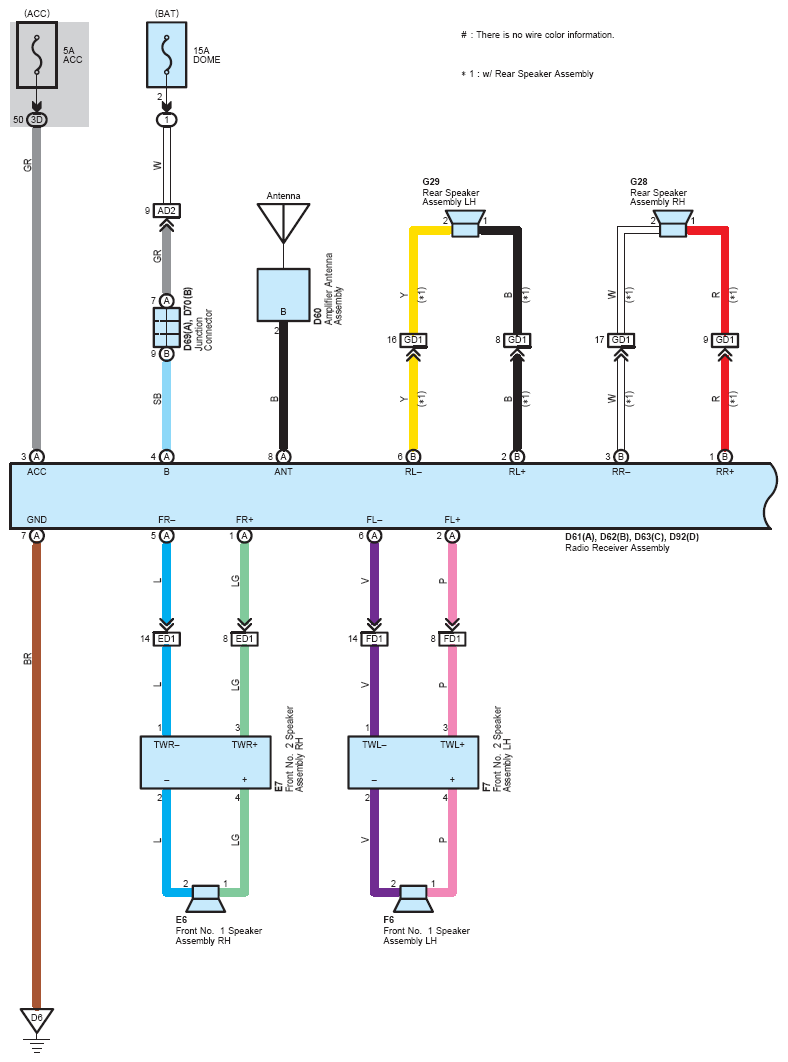

Fig 1: Audio System Wiring Diagram (1 Of 2)
G08759864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

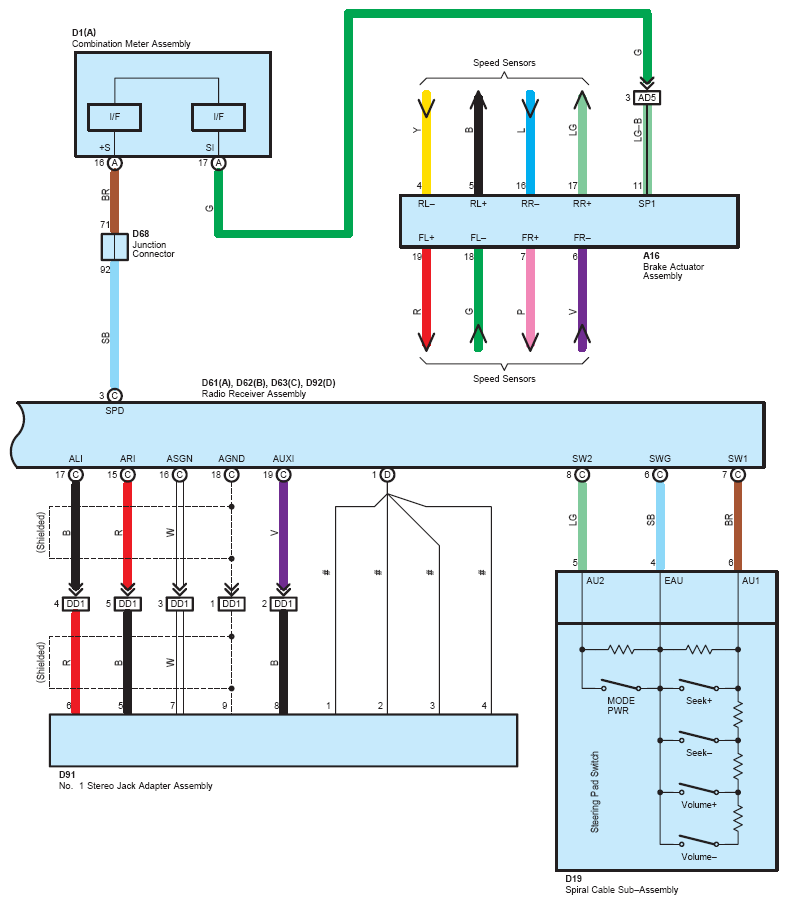

Fig 2: Audio System Wiring Diagram (2 Of 2)
G08759865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
