Home >> Scion >> 2012 >> iQ >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Charging >> Notes

OEM System Circuits: Charging: Notes

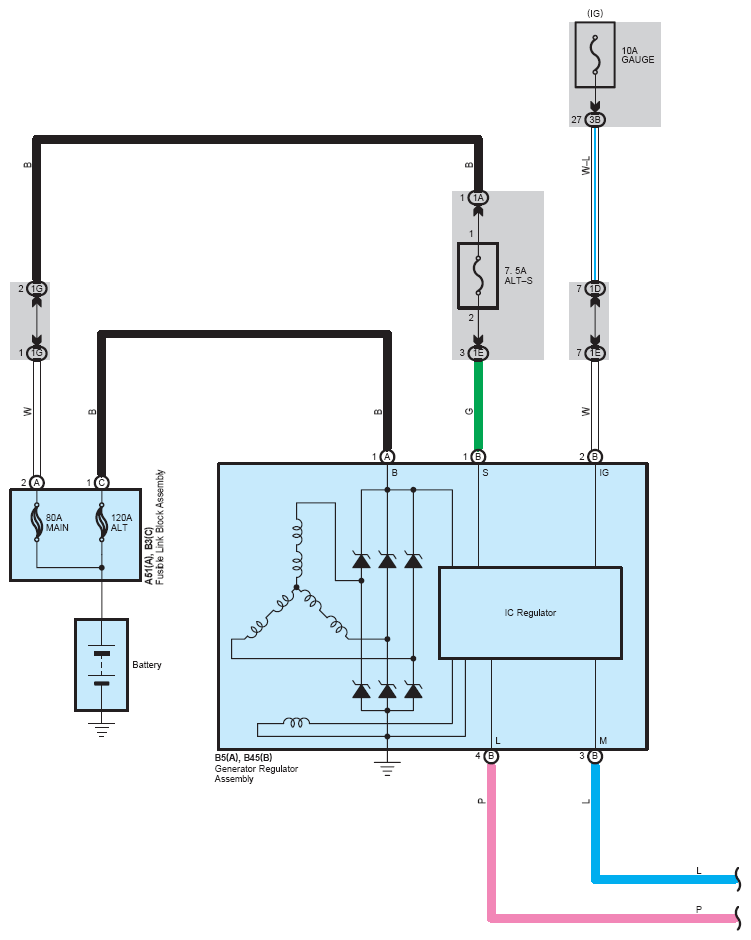

Fig 1: Charging System Wiring Diagram (1 Of 2)
G08759780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

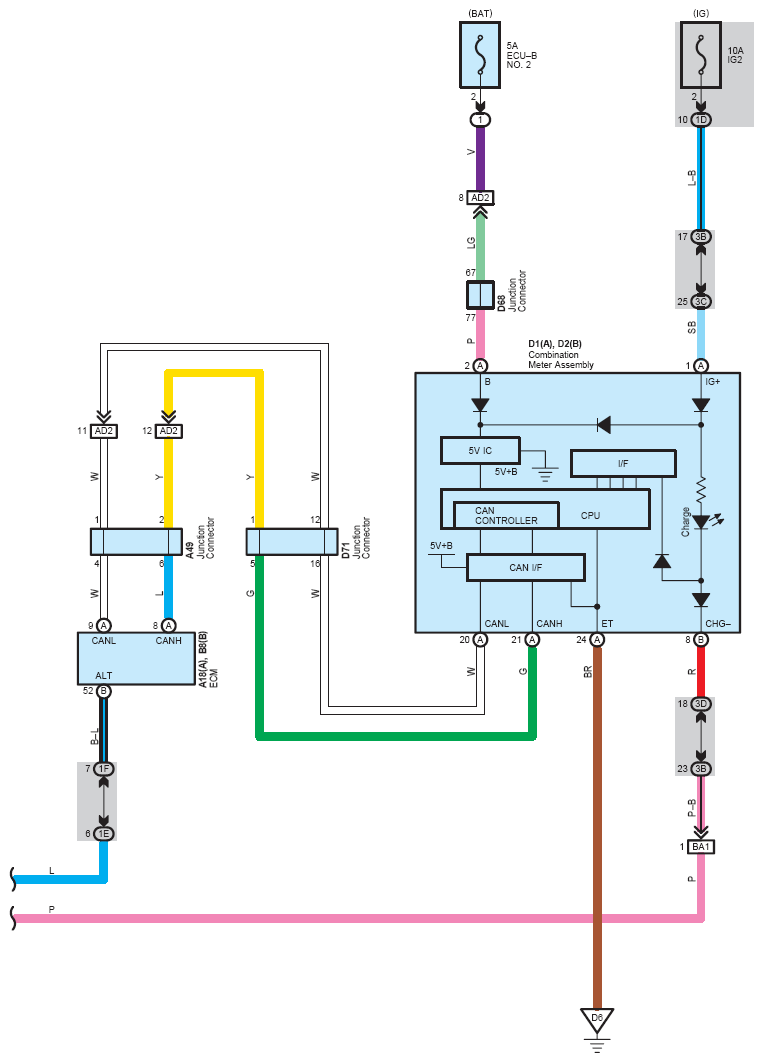

Fig 2: Charging System Wiring Diagram (2 Of 2)
G08759781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
