Data Link Connector 3
>>
Notes
Data Link Connector 3: Notes

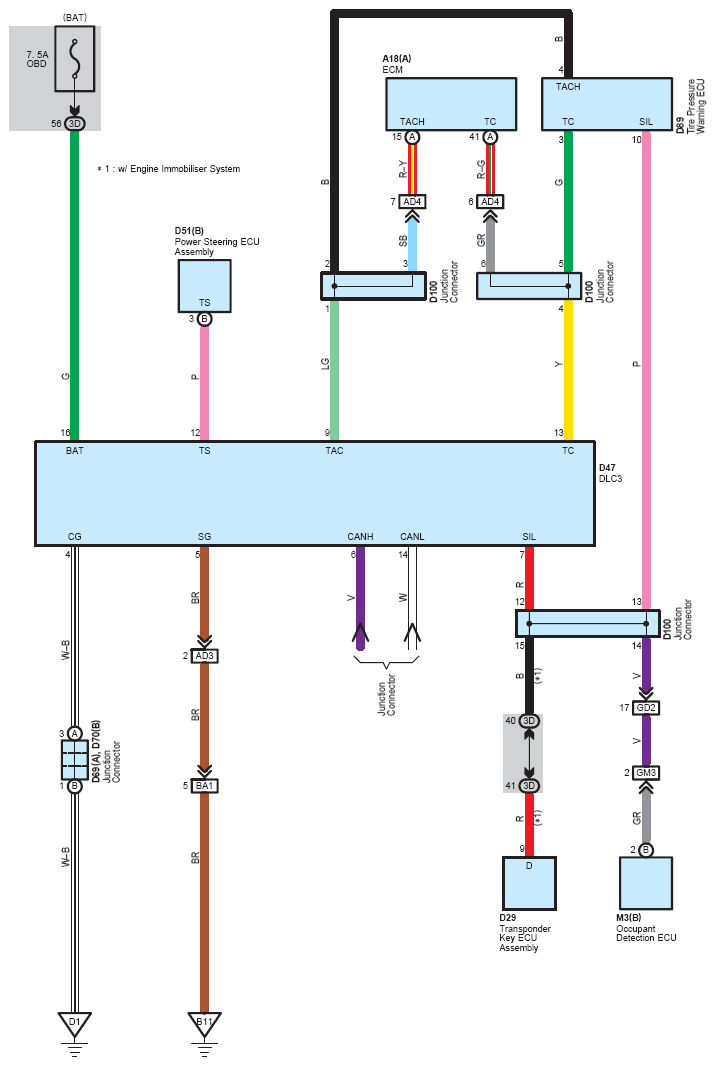

Fig 1: Data Link Connector 3 System Wiring Diagram
