Home >> Scion >> 2012 >> iQ >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Horn >> Notes

OEM System Circuits: Horn: Notes

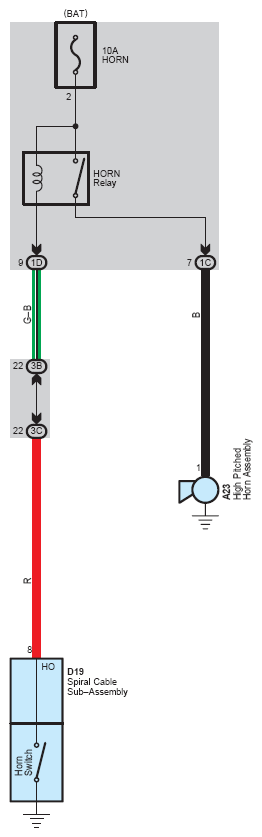

Fig 1: Horn System Wiring Diagram
G08759863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
