OEM System Circuits: Starting: Notes

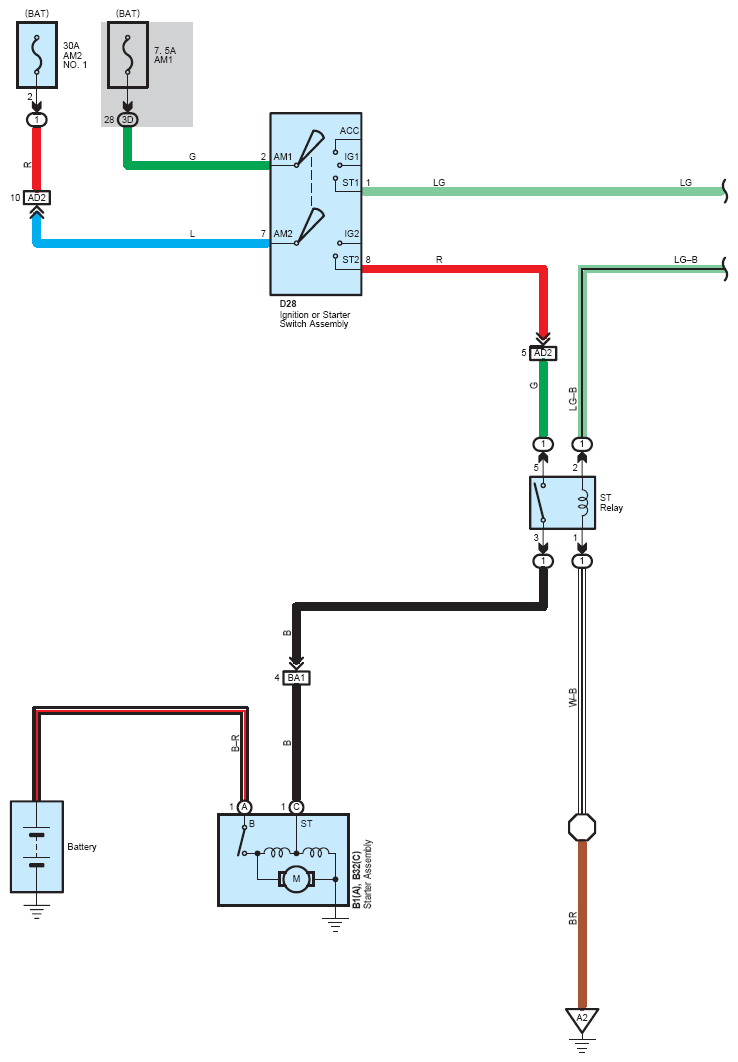

Fig 1: Starting System Wiring Diagram (1 Of 2)
G08759778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

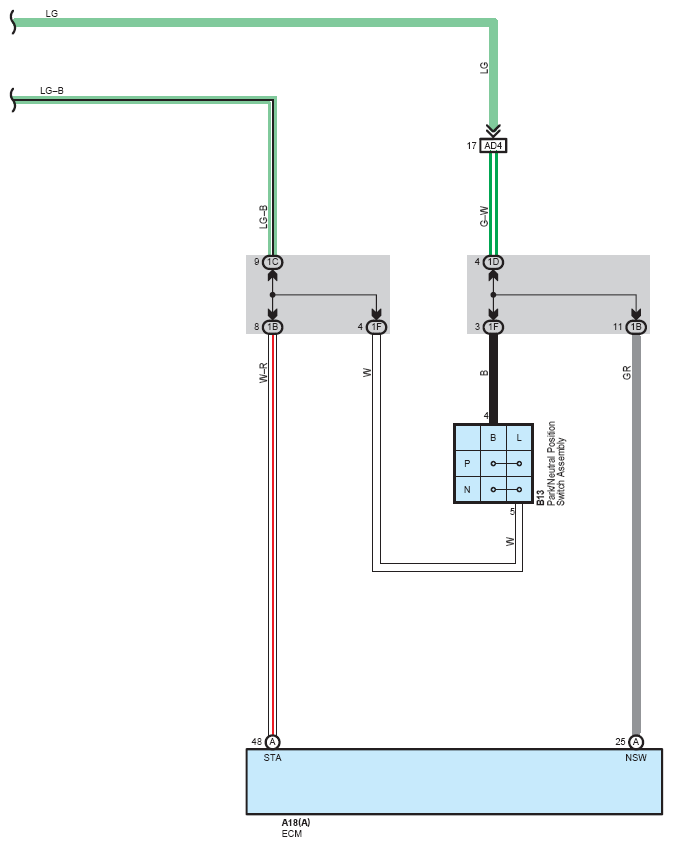

Fig 2: Starting System Wiring Diagram (2 Of 2)
G08759779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
