Fuel Injector: Components: Illustration

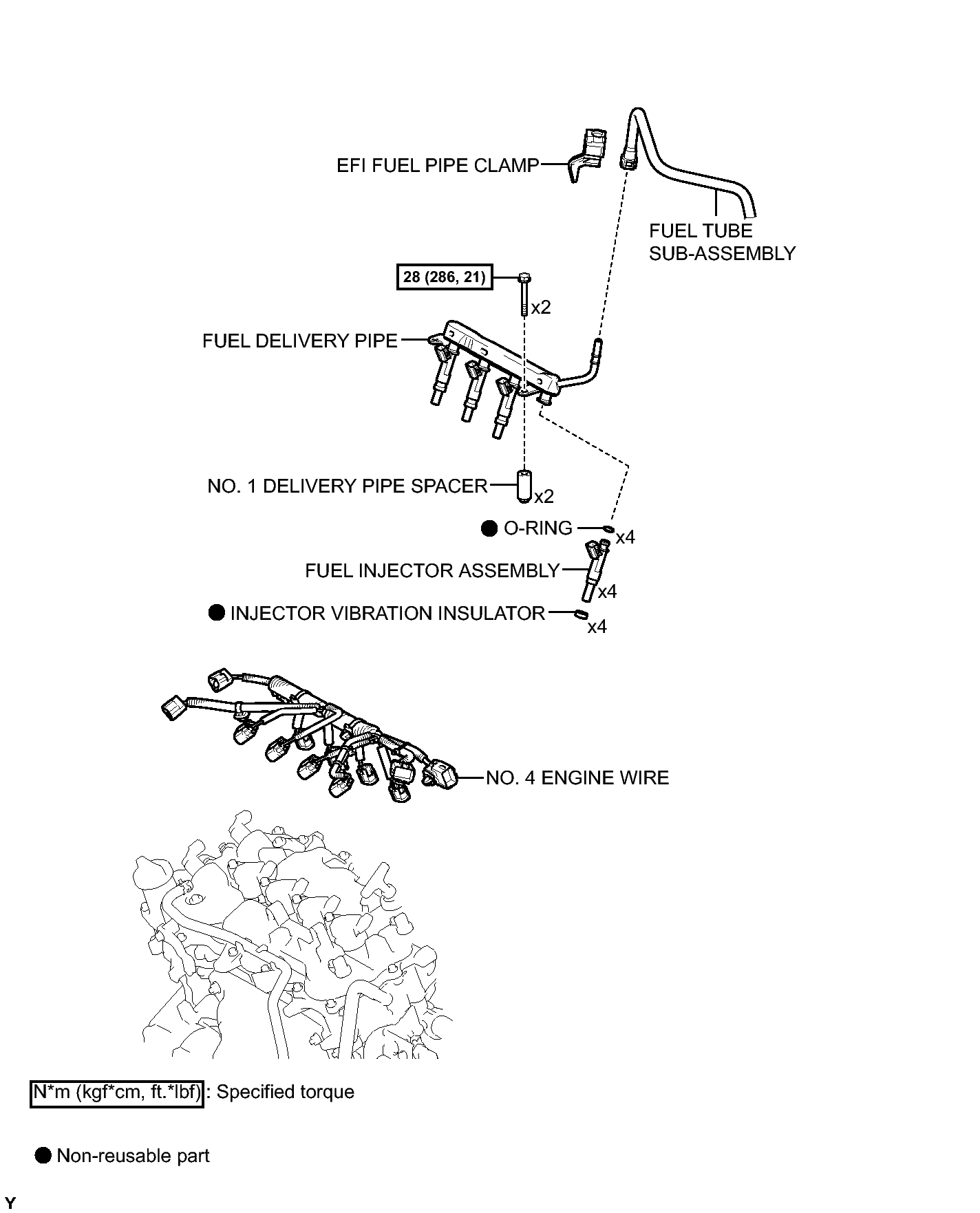

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 2)

GTY346581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
