Fuel Tank: Components: Illustration

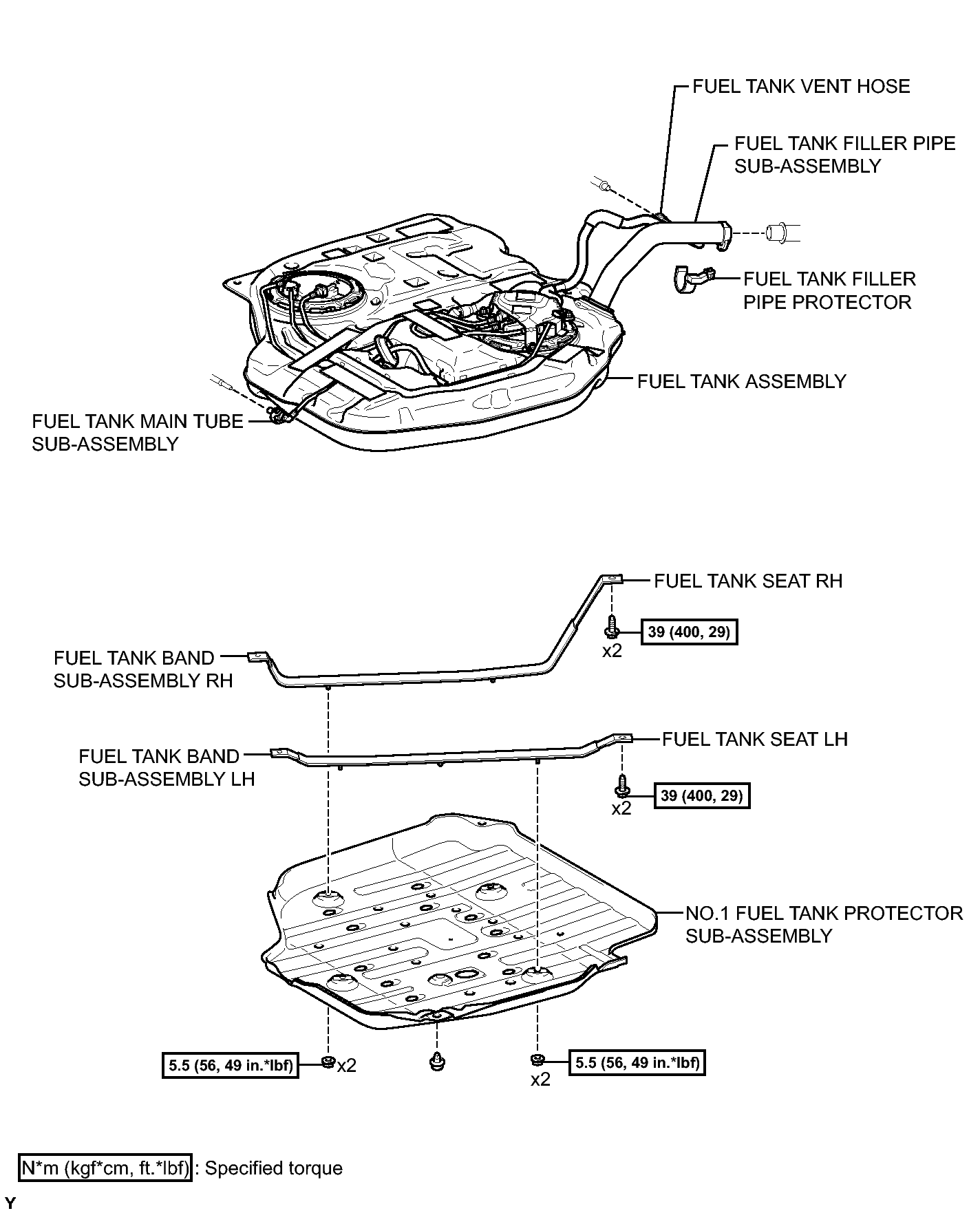

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY346541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

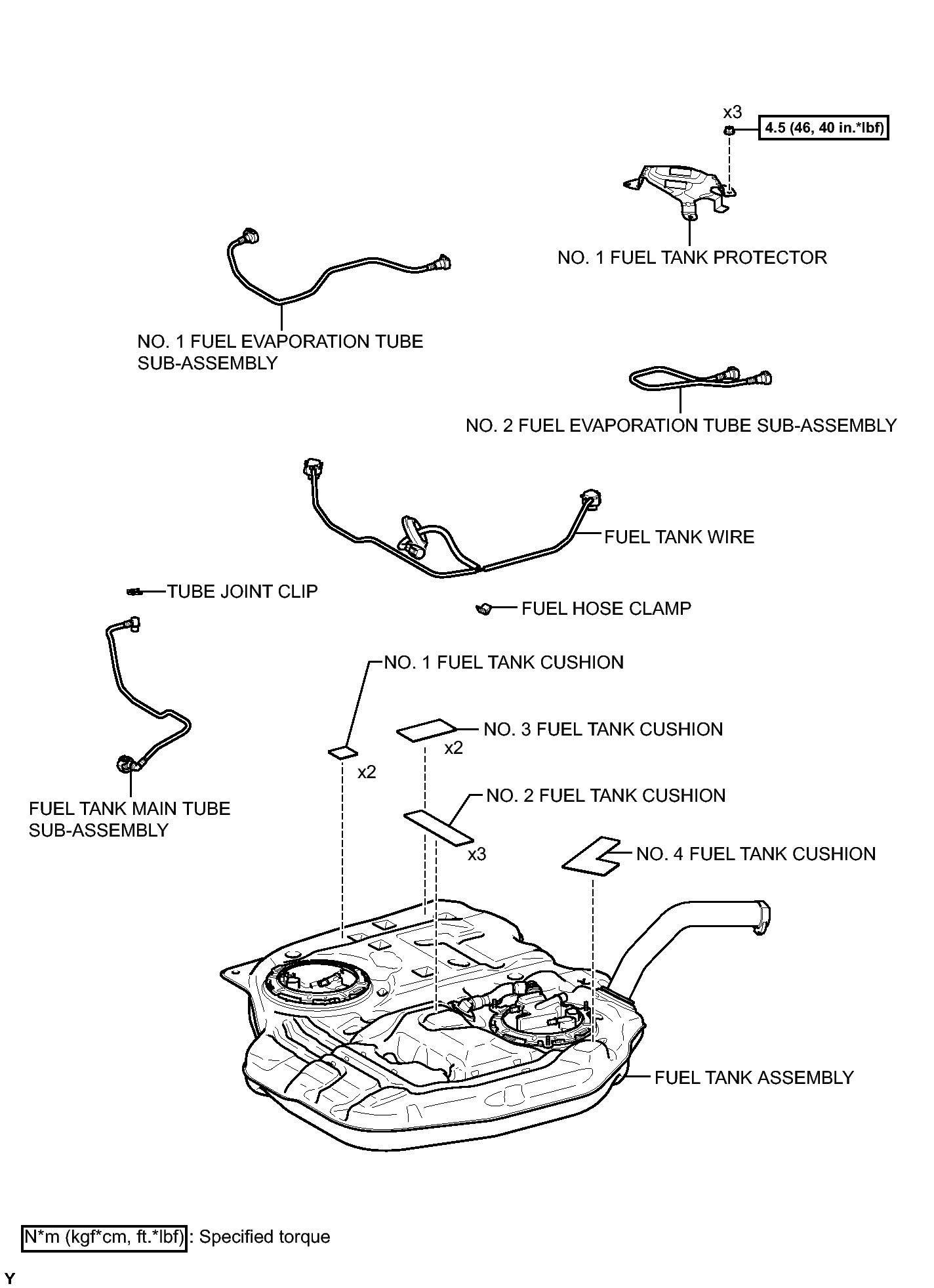

Fig 2: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
GTY345288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

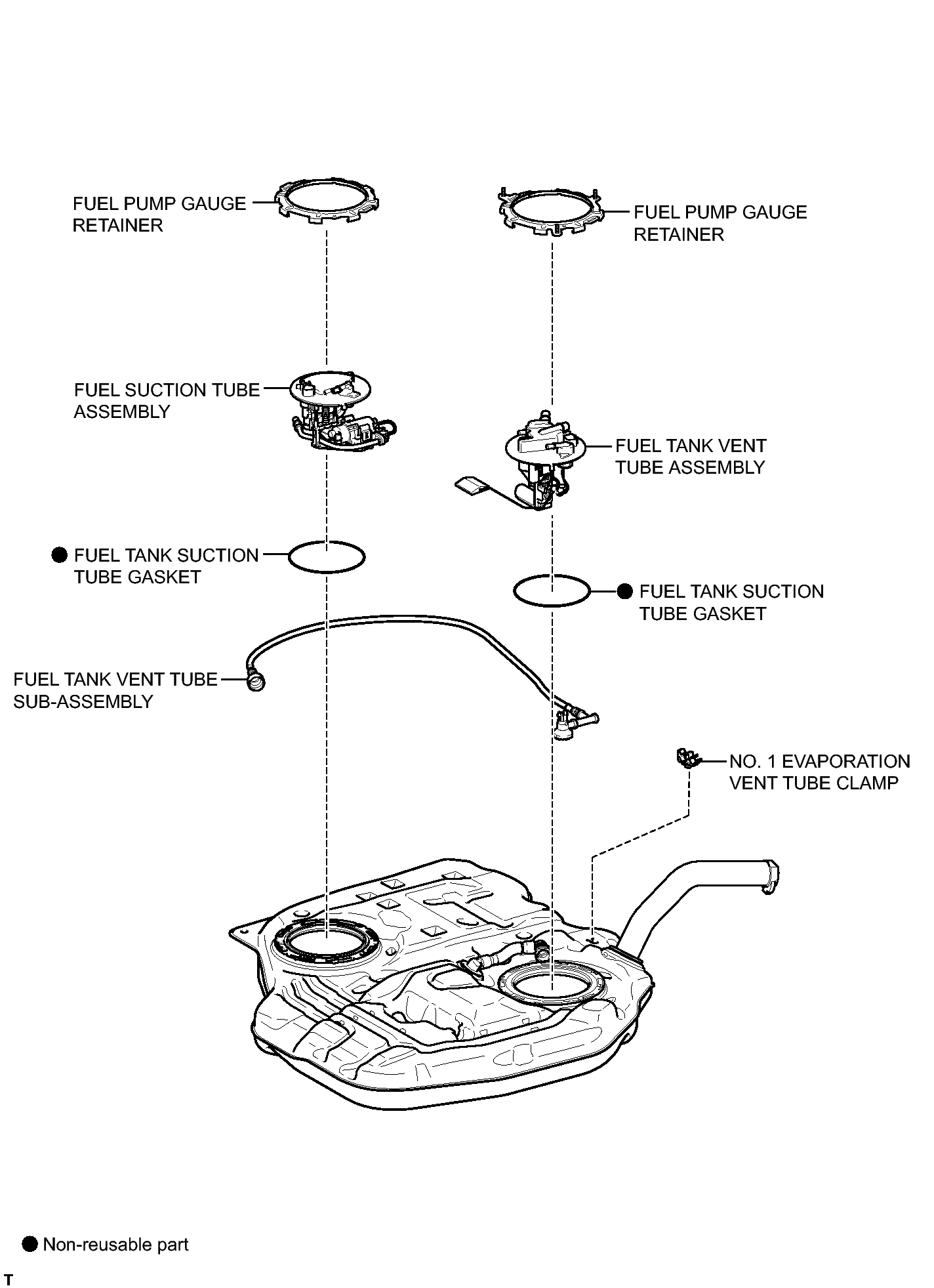

Fig 3: Identifying Fuel Tank Replacement Components (3 Of 3)
GTY344413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
