Home >> Scion >> 2012 >> iQ >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Air Fuel Ratio Sensor >> Components >> Illustration

Air Fuel Ratio Sensor: Components: Illustration

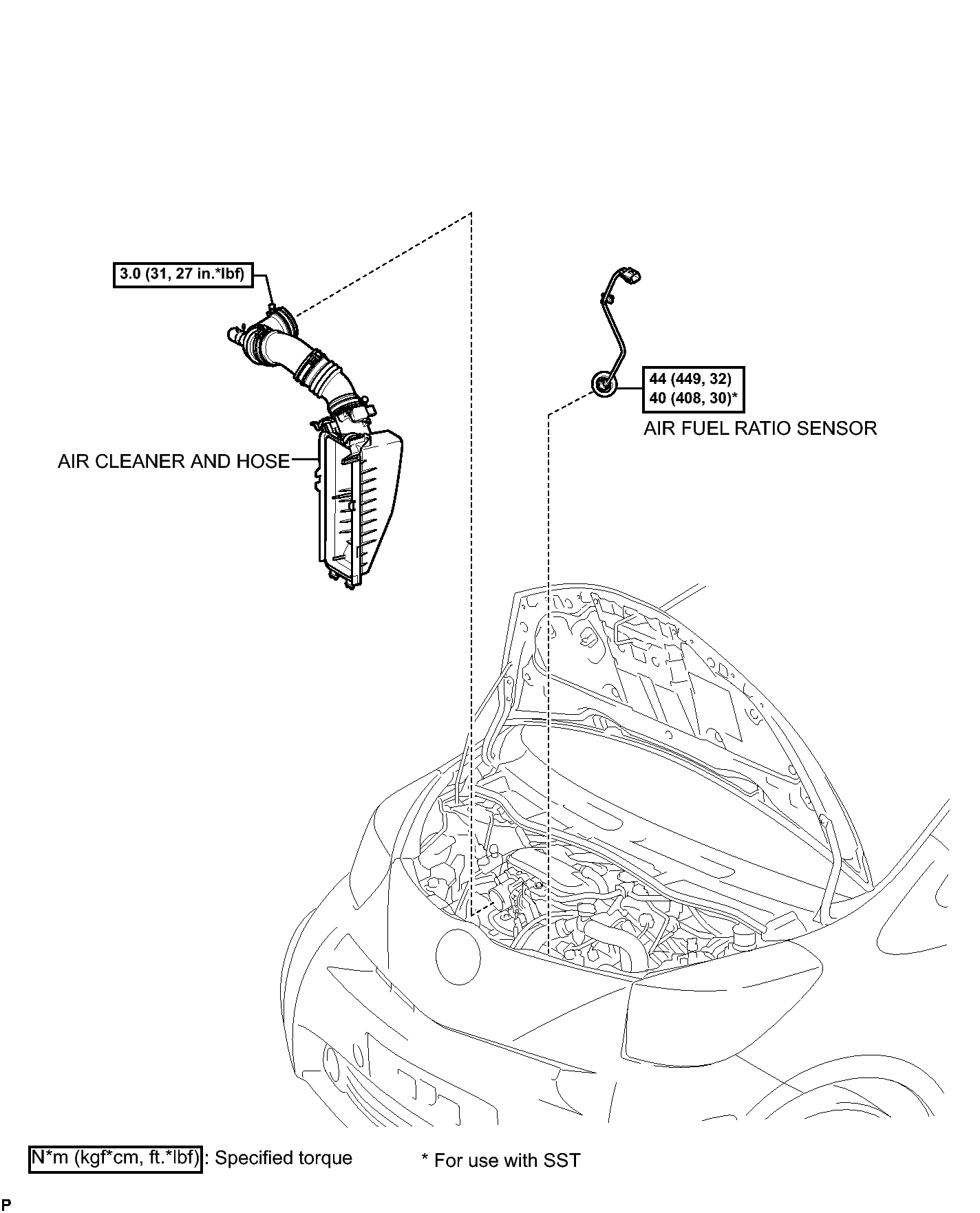

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications

GTY344563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
