Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

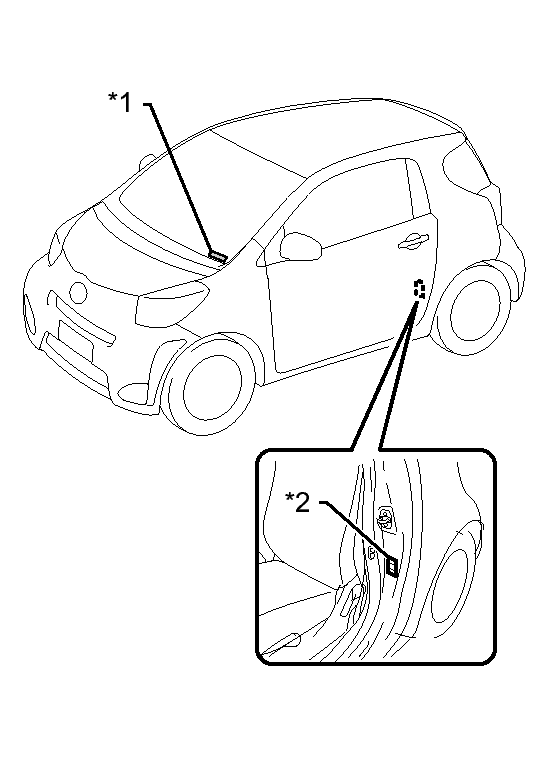

      Fig 1: Identifying Vehicle Identification Number Plate
      GTY344943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Vehicle Identification Number
      *2 Certification Label
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

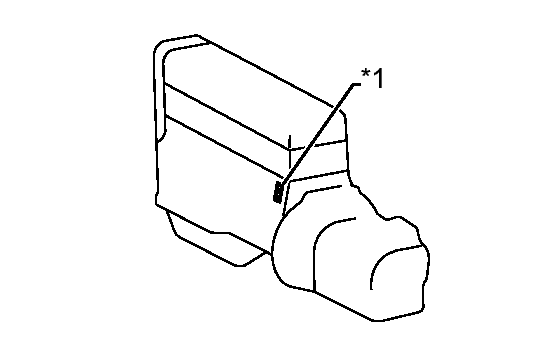

      Fig 2: Identifying Engine Serial Number
      GTY345103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Serial Number
    2. The transaxle serial number is stamped on the transaxle case as shown in the illustration.
      Fig 3: Identifying Transaxle Serial Number
      GTY346776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Transaxle Serial Number
