Home >> Scion >> 2012 >> iQ >> Repair and Diagnosis >> Transmission >> Automatic Trans >> CVT Transaxle (Service Information) >> Transmission Control Cable >> Components >> Illustration

Transmission Control Cable: Components: Illustration

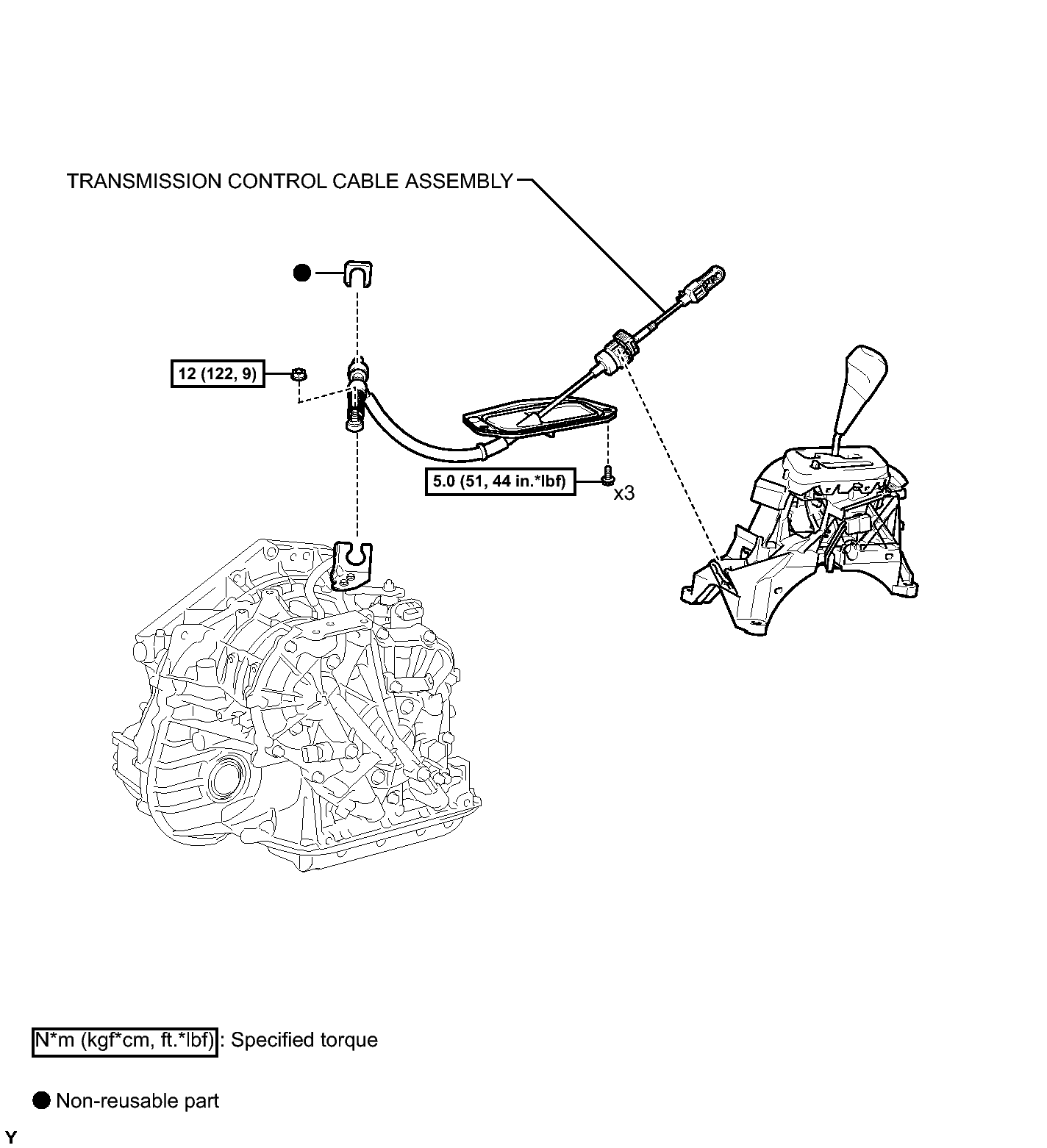

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications

GTY344292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
