Home >> Scion >> 2012 >> tC Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System (Service Information) >> Rear Speed Sensor >> Components >> Illustration

Rear Speed Sensor: Components: Illustration

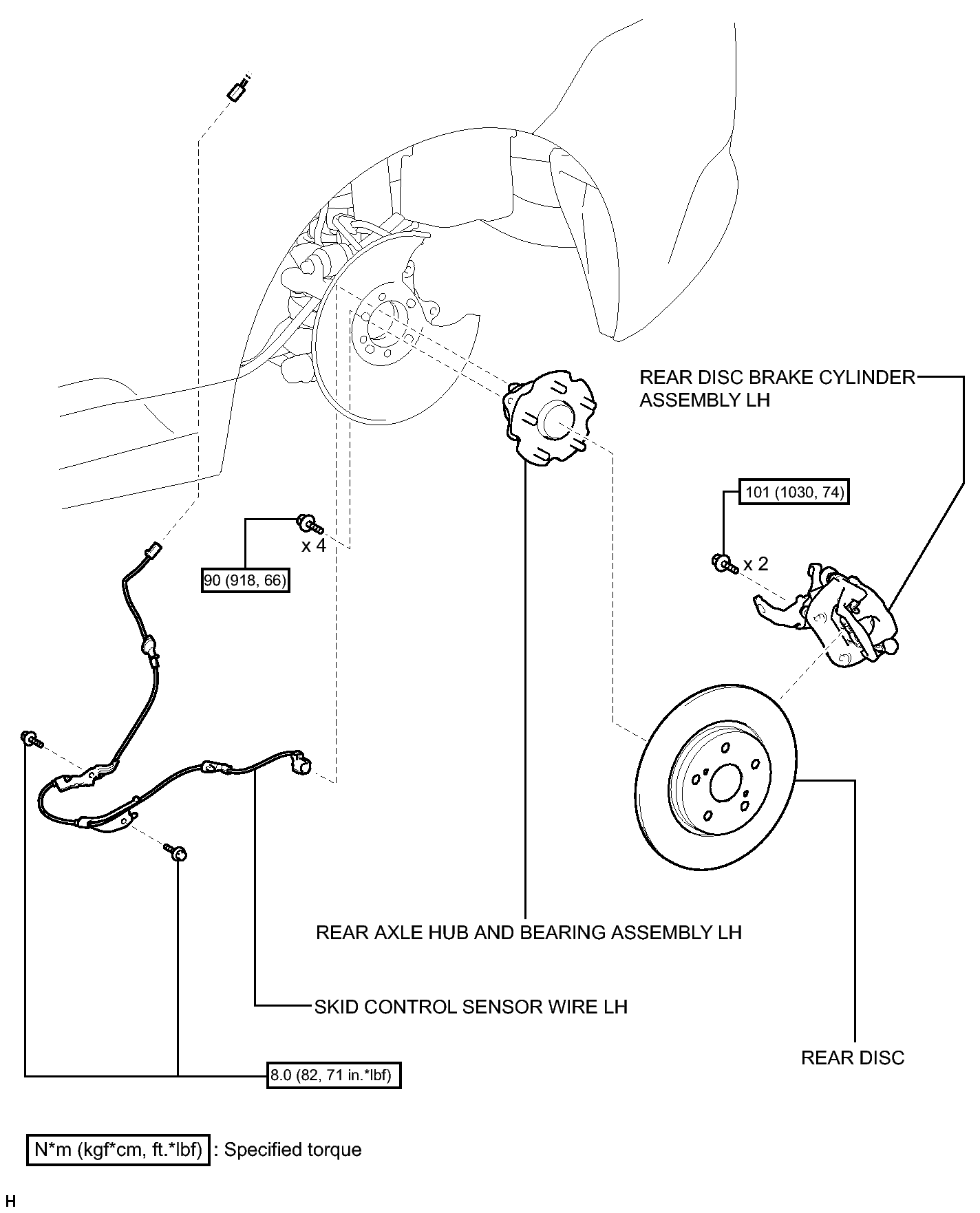

Fig 1: Identifying Rear Speed Sensor Replacement Components With Torque Specifications

GTY313497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
