Engine Immobiliser System (w/o Smart Key System)
>>
Notes
Engine Immobiliser System (w/o Smart Key System): Notes

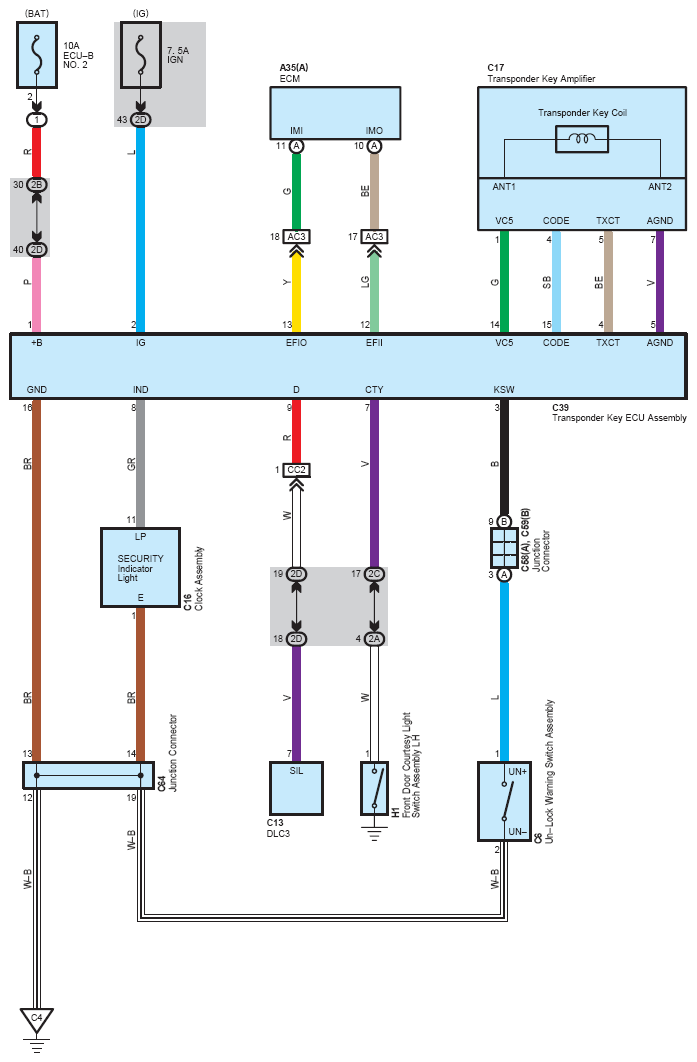

Fig 1: Engine Immobiliser System (w/o Smart Key System) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
