Ignition Switch: Inspection: Inspection

INSPECT IGNITION SWITCH ASSEMBLY

Measure the resistance according to the value(s) in the table below.

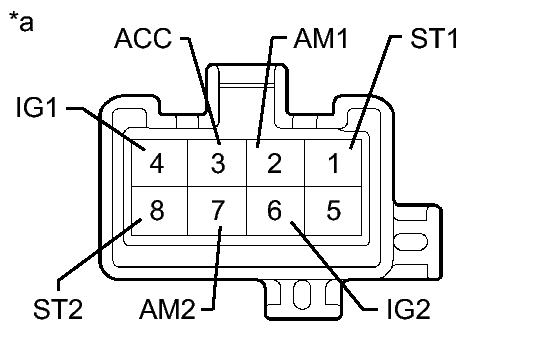

Fig 1: Inspecting Ignition Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
All combinations of all terminals	LOCK	10 kΩ or higher
2 (AM1) - 3 (ACC)	ACC	Below 1 Ω
2 (AM1) - 3 (ACC) 2 (AM1) - 4 (IG1) 6 (IG2) - 7 (AM2)	ON	Below 1 Ω
1 (ST1) - 2 (AM1) 1 (ST1) - 4 (IG1) 6 (IG2) - 7 (AM2) 6 (IG2) - 8 (ST2)	START	Below 1 Ω

TEXT IN ILLUSTRATION

*a	Component without harness connected (Ignition Switch)

If the result is not as specified, replace the ignition switch assembly.
