Transmission Control Cable: Components: Illustration

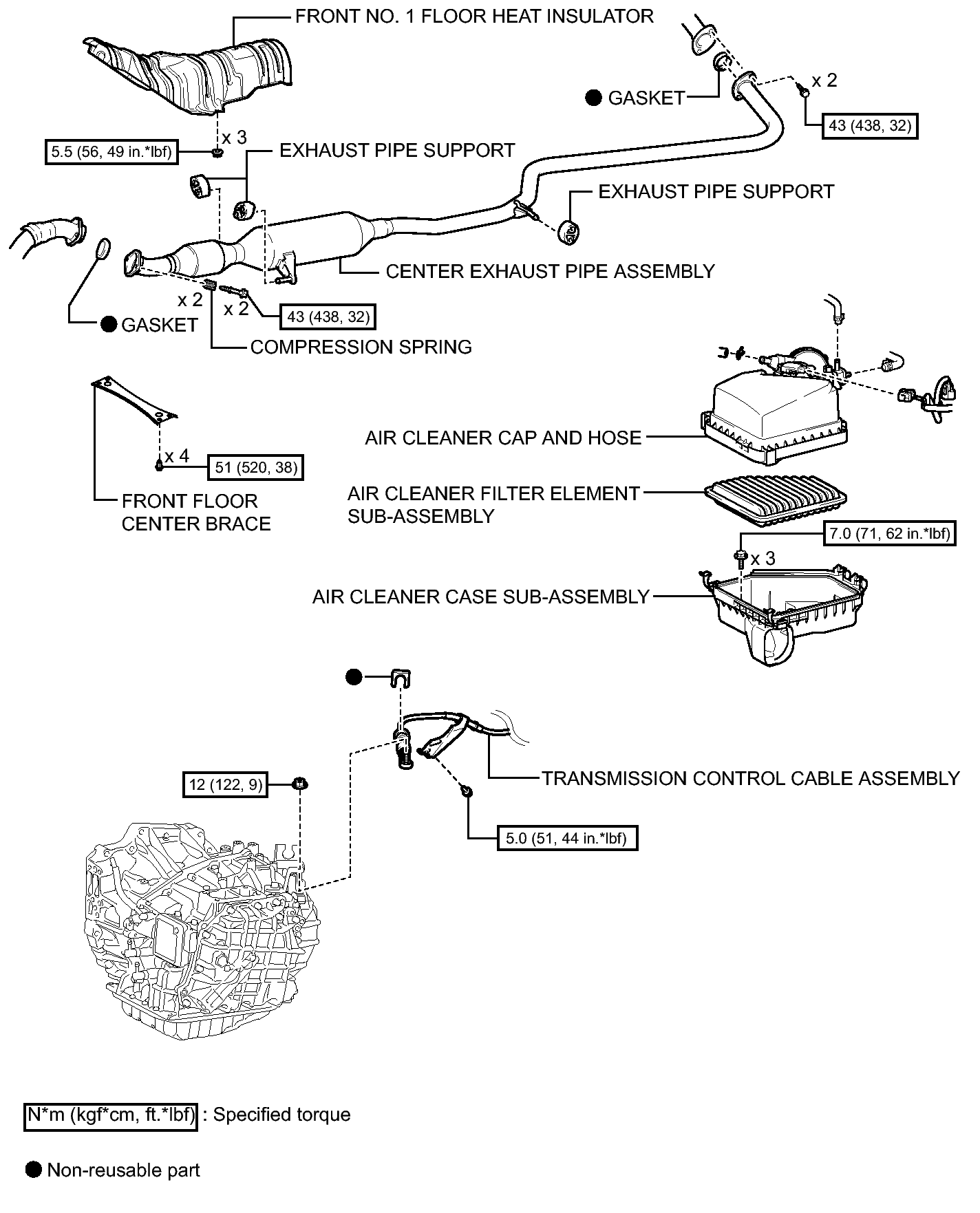

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
GTY311445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

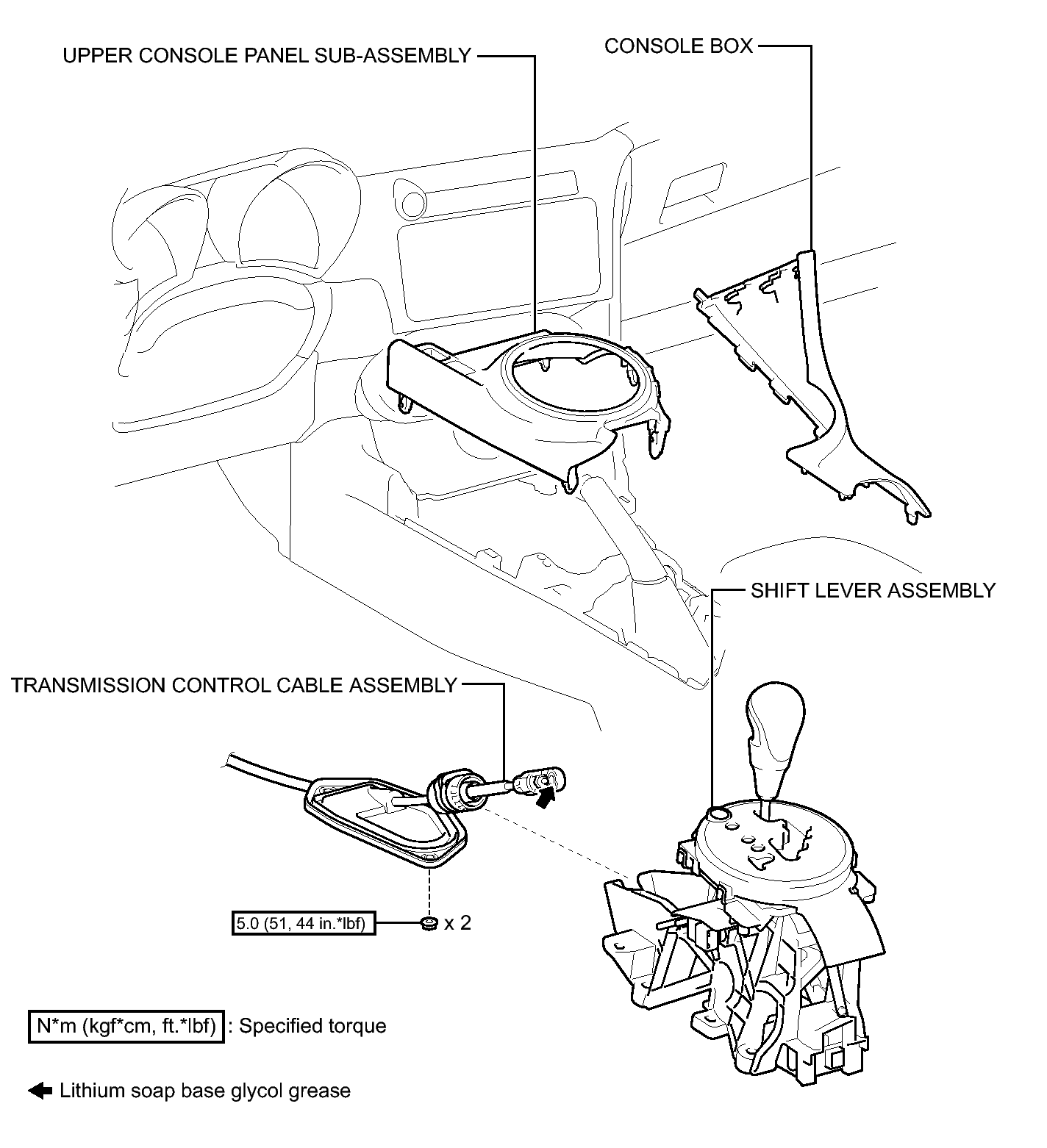

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
GTY313990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
