Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

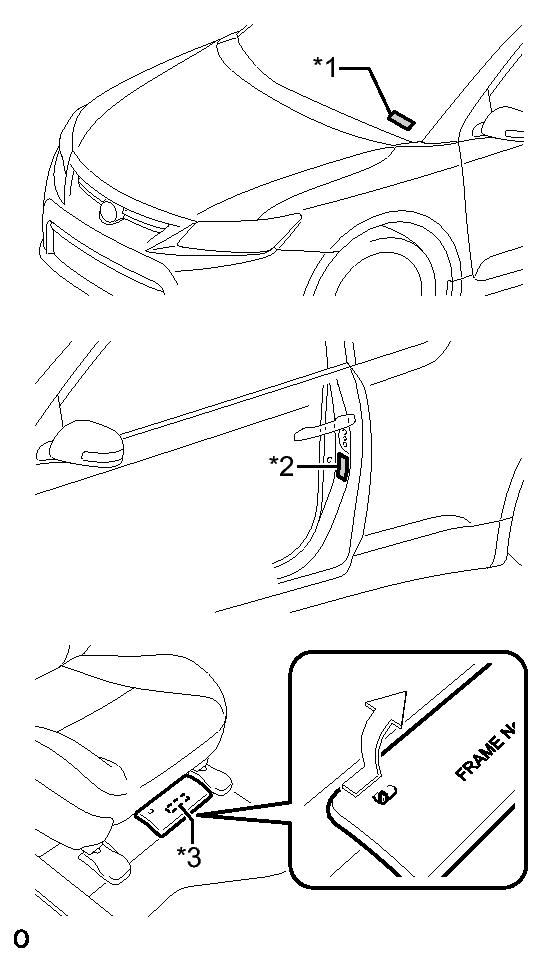

      Fig 1: Identifying Vehicle Identification Number Plate
      GTY313253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Vehicle Identification Number
      *2 Certification Label
      *3 Frame Number
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
      Fig 2: Identifying Engine Serial Number
      GTY313911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Serial Number
    2. The transaxle serial number is stamped on the transaxle case as shown in the illustration.

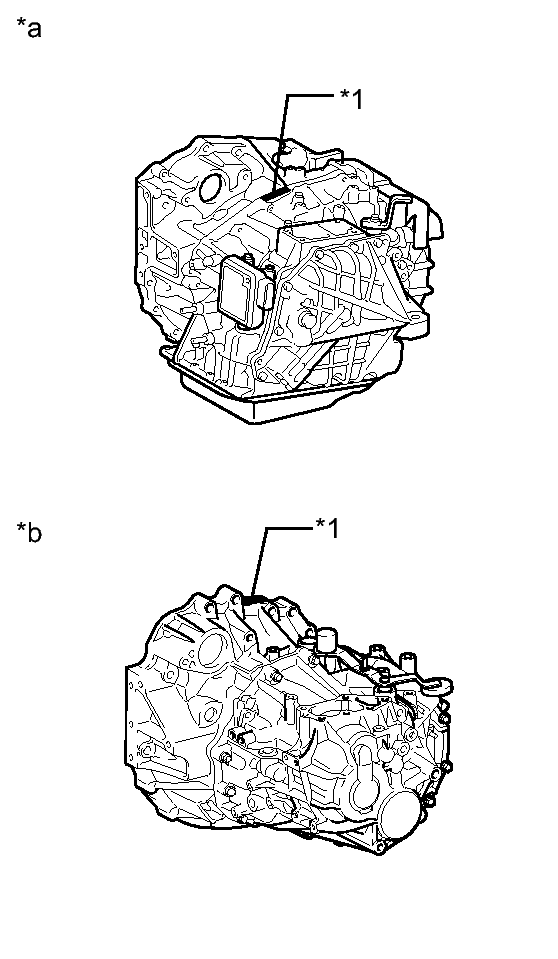

      Fig 3: Identifying Transaxle Serial Number
      GTY310449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a U760E
      *b EB60
      *1 Transaxle Serial Number
