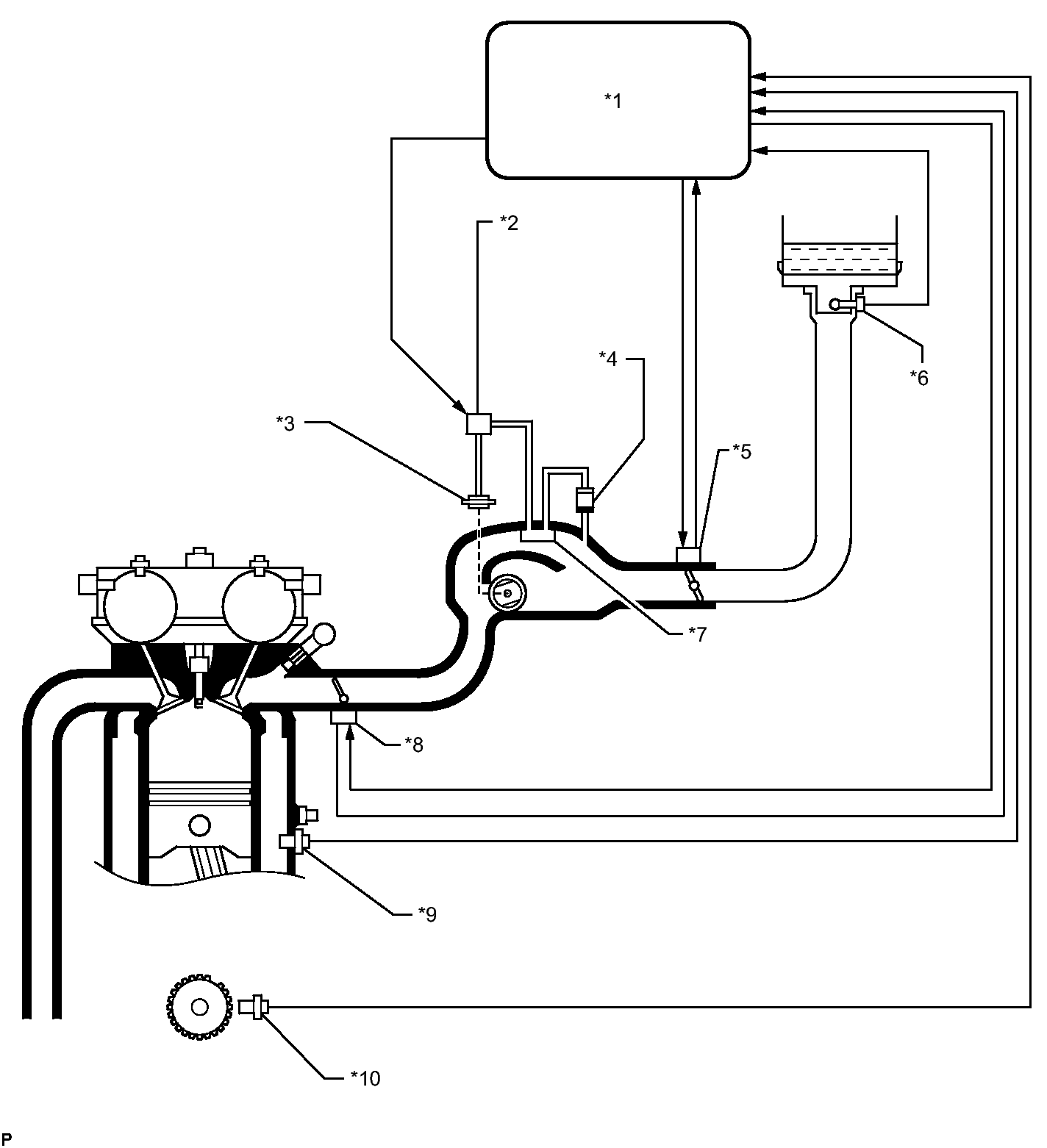

| *1 |
ECM |
*2 |
Vacuum Switching Valve (for ACIS) |
| *3 |
Intake Air Control Valve Actuator (for ACIS) |
*4 |
Check Valve |
| *5 |
Throttle Body |
*6 |
Mass Air Flow Meter |
| *7 |
Vacuum Tank |
*8 |
Intake Air Control Valve Actuator (for TCV) |
| *9 |
Engine Coolant Temperature Sensor |
*10 |
Crankshaft Position Sensor |
