OEM Ground Points
>>
Ground Points
>>
Notes
Ground Points: Notes

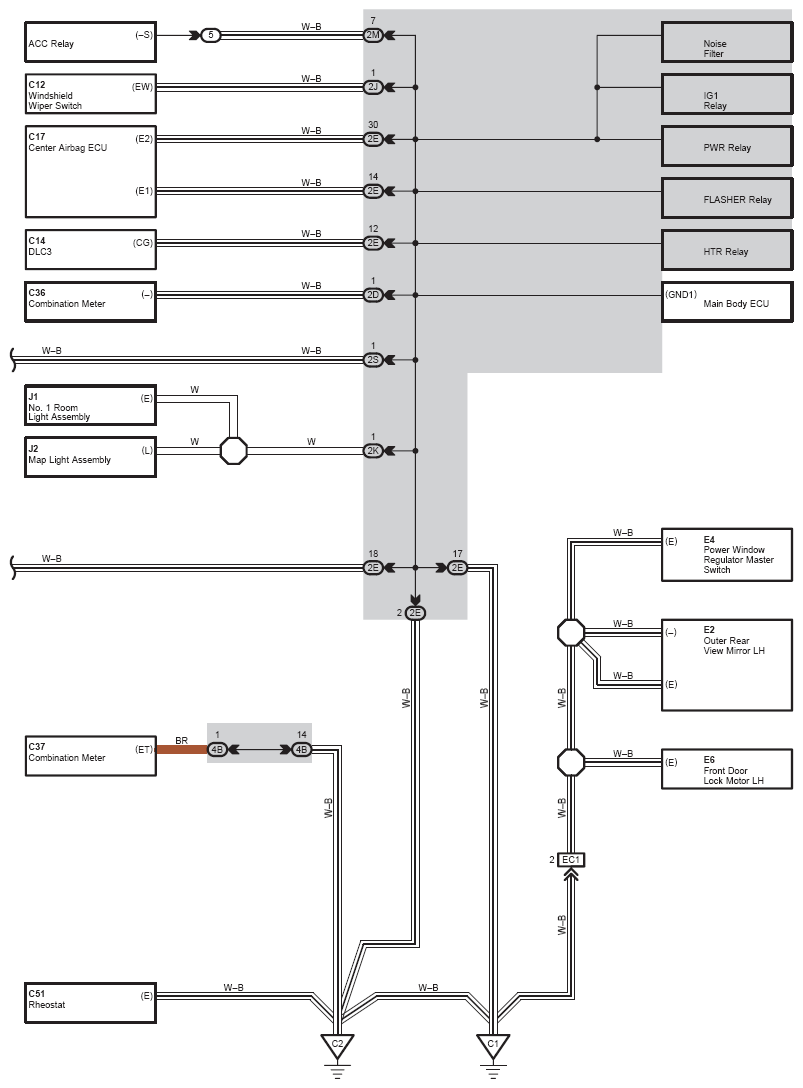

Fig 1: Ground Point Wiring Diagram (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

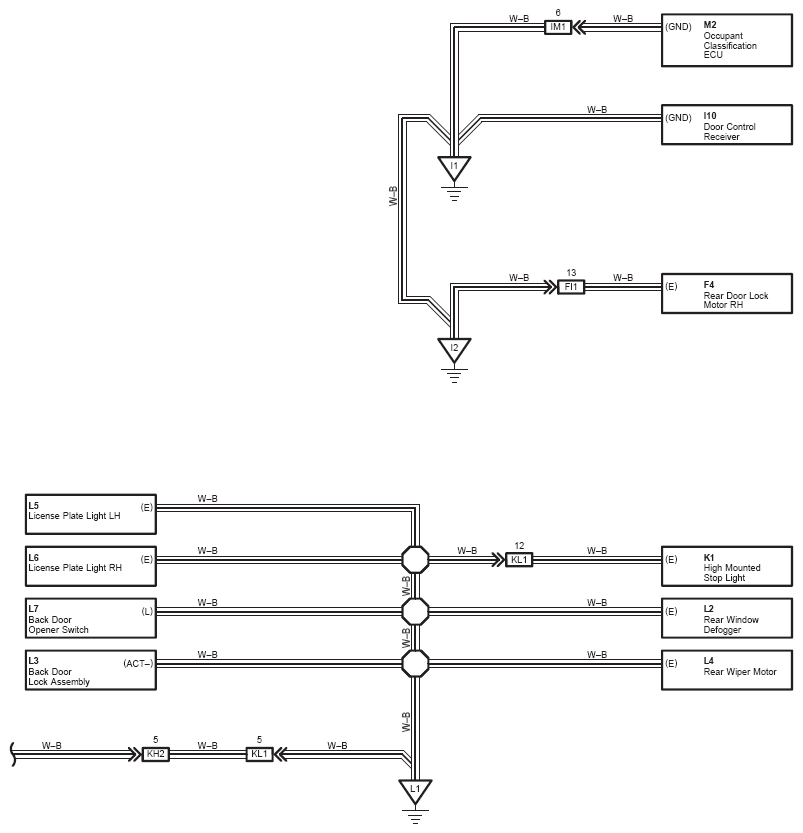

Fig 2: Ground Point Wiring Diagram (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

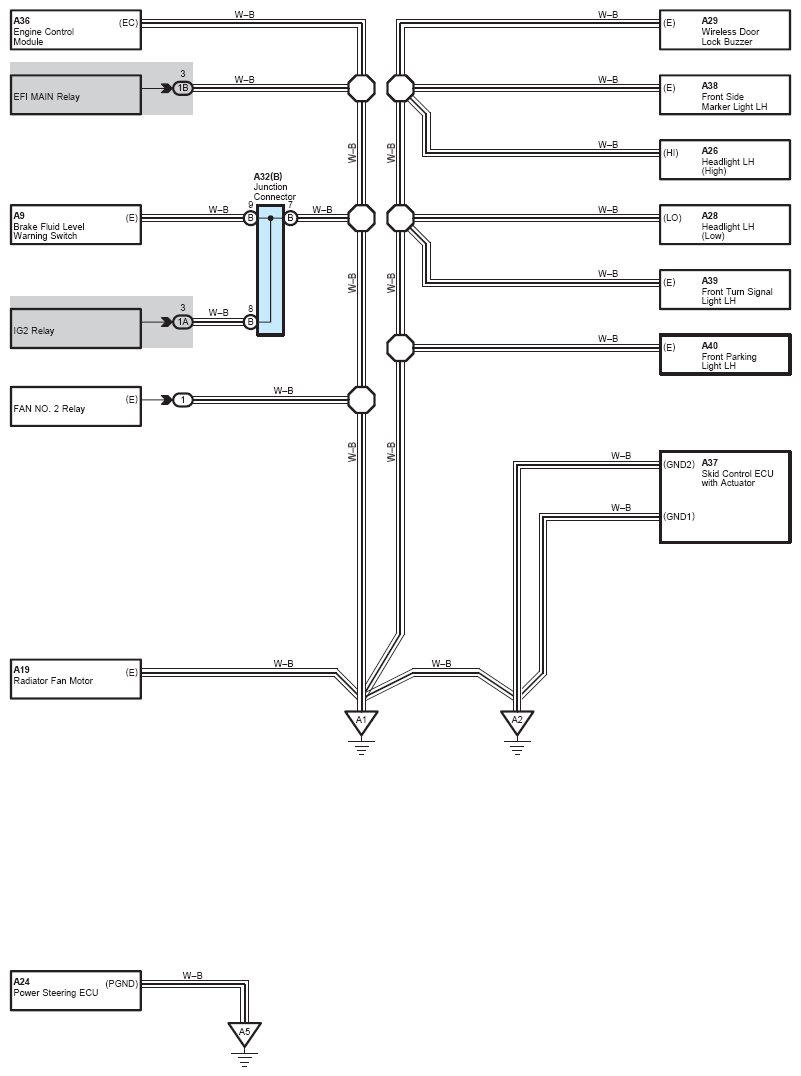

Fig 3: Ground Point Wiring Diagram (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

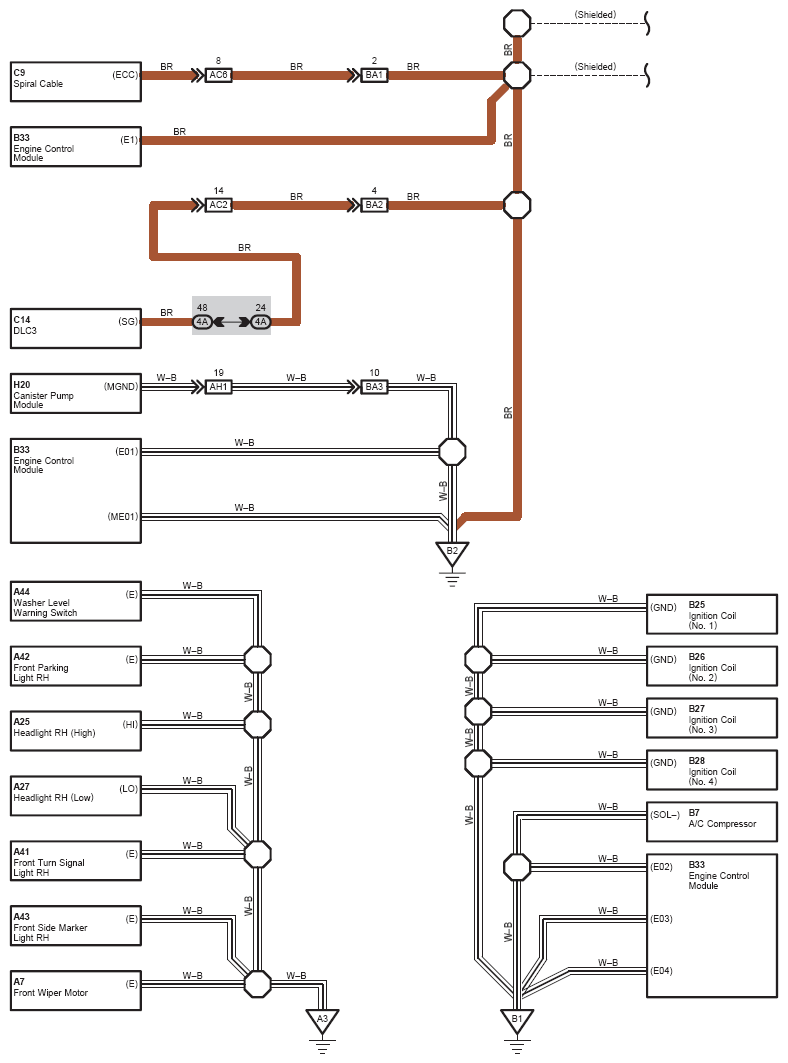

Fig 4: Ground Point Wiring Diagram (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

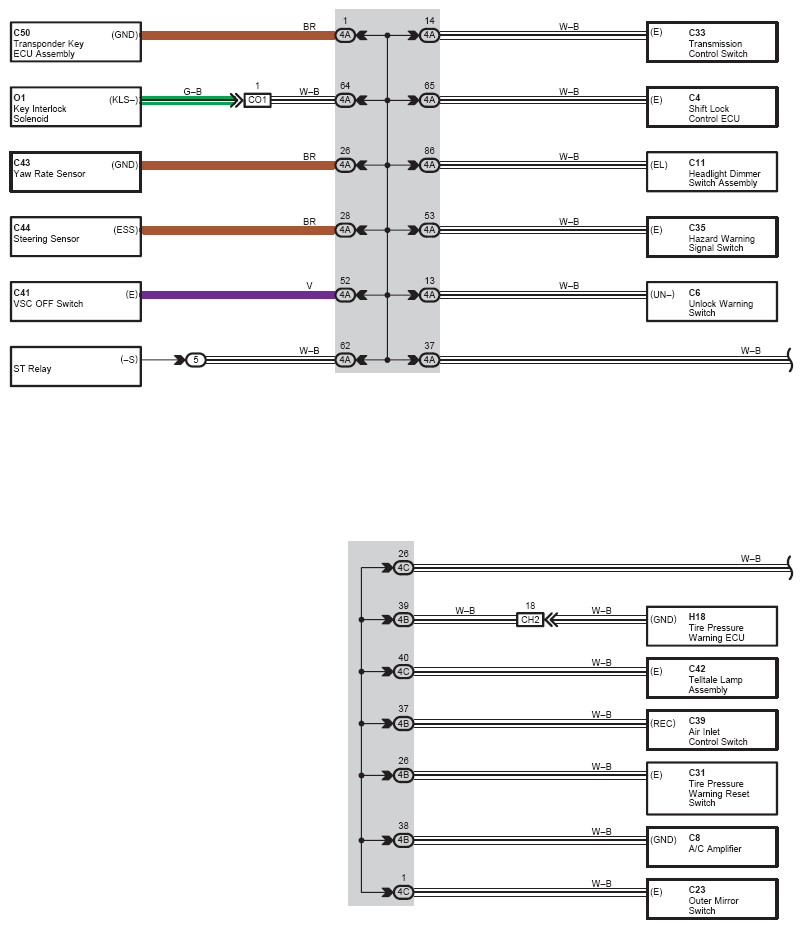

Fig 5: Ground Point Wiring Diagram (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

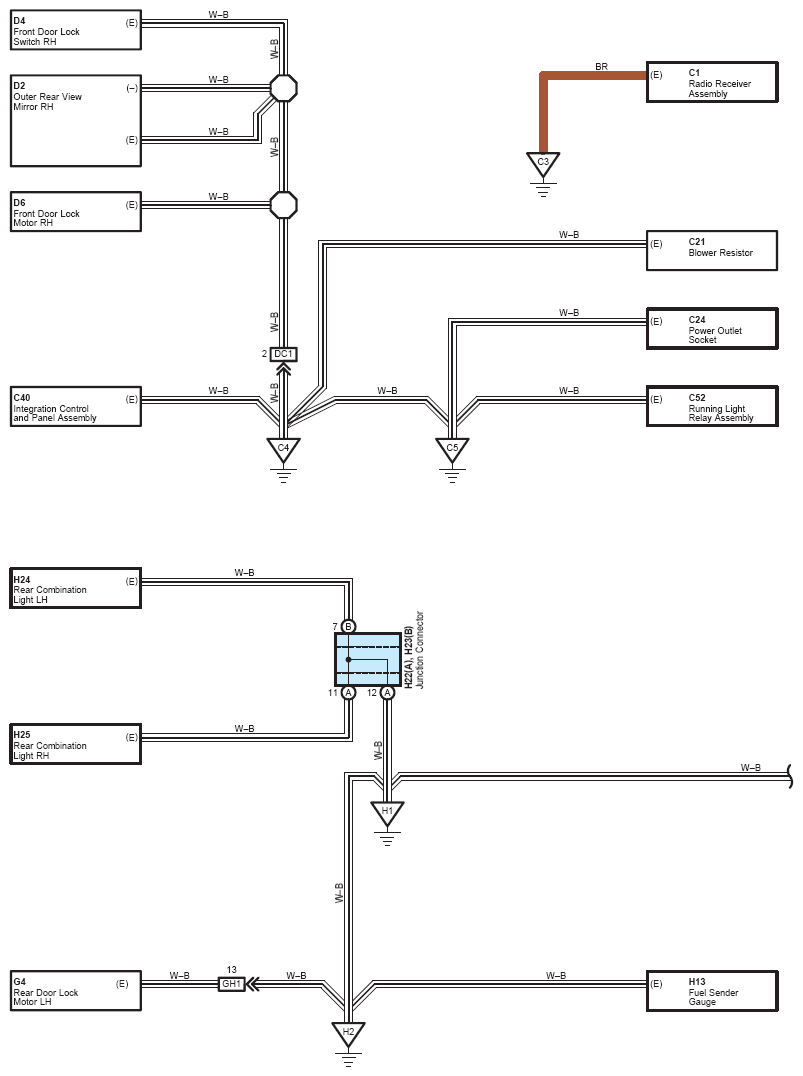

Fig 6: Ground Point Wiring Diagram (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
