xB Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Engine Immobilizer System
>>
Notes
Engine Immobilizer System: Notes

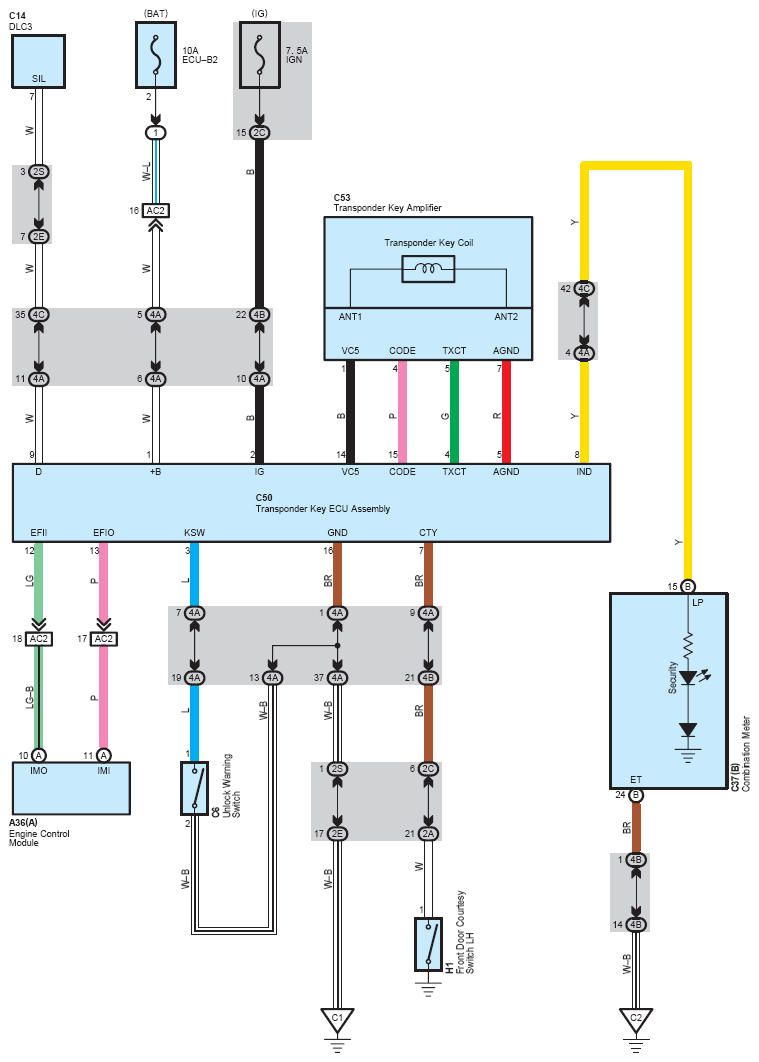

Fig 1: Engine Immobilizer System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
