Home >> Scion >> 2012 >> xB Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Ignition >> Notes

OEM System Circuits: Ignition: Notes

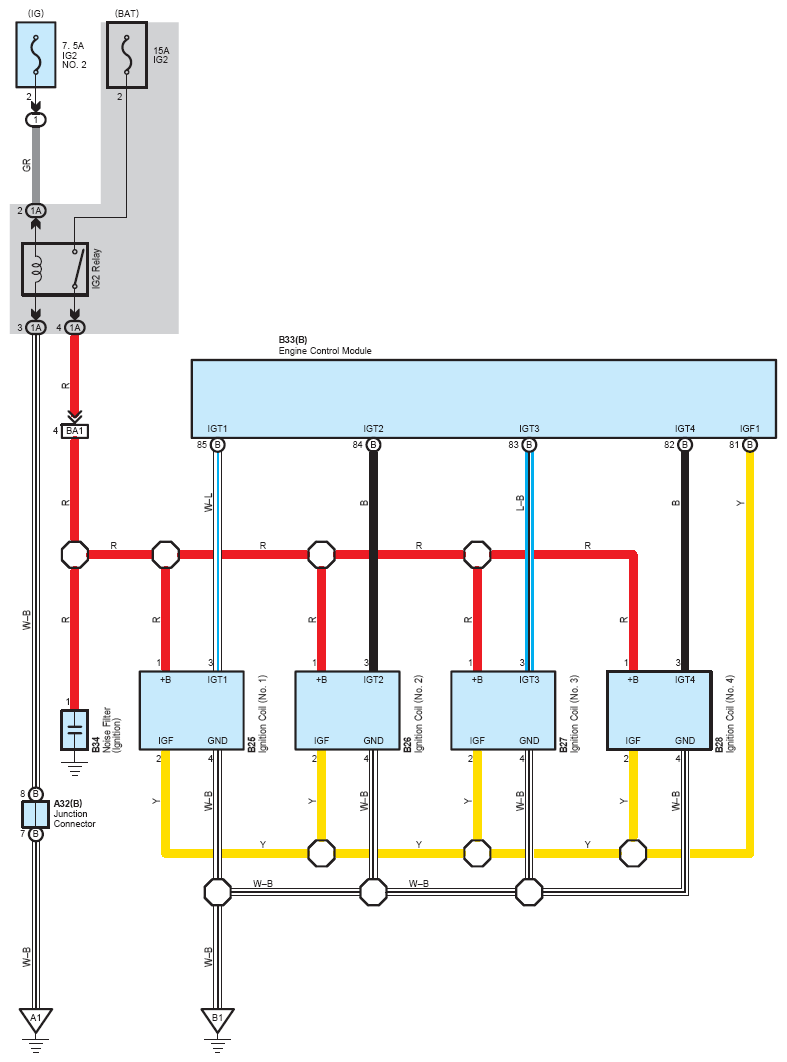

Fig 1: Ignition System Wiring Diagram
G08760709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
